Station 06 · Testing
PME-1018

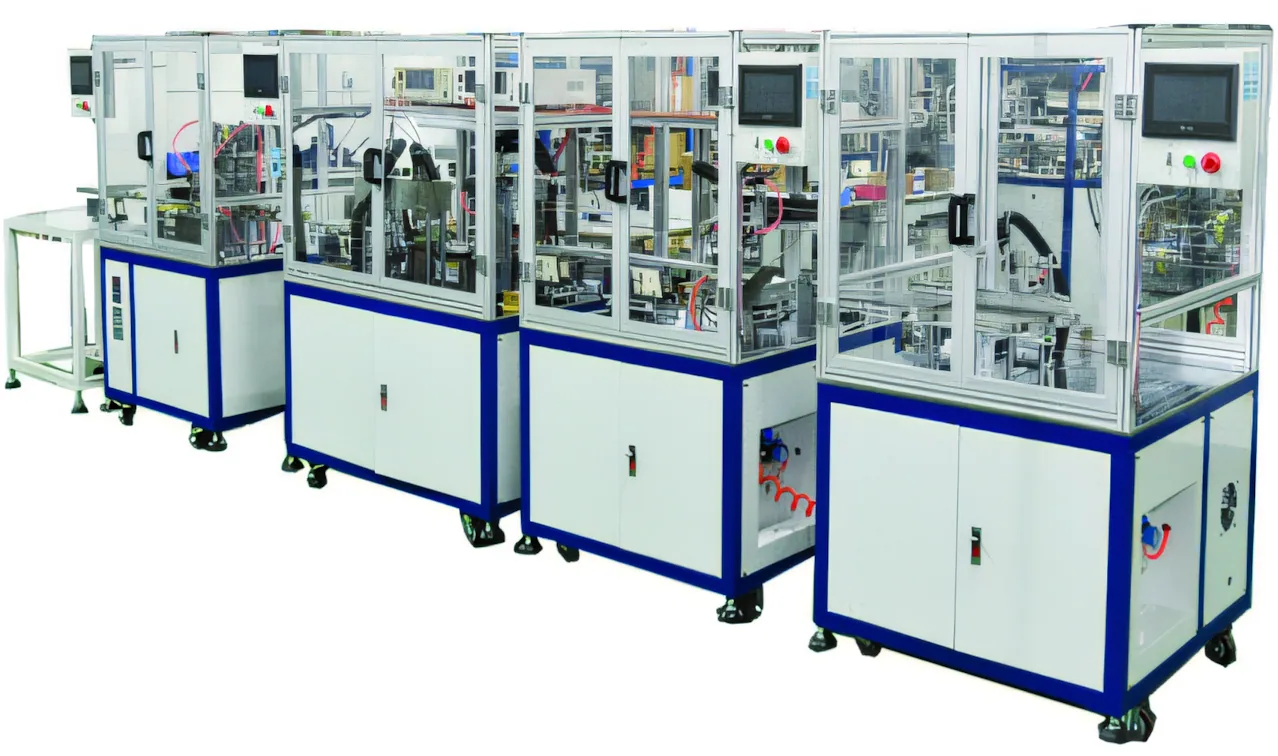

Transformer Test Line
Conveyor-fed testing of low- and high-voltage transformers, with NG parts unloaded and good parts sorted to tray or conveyor. Surge, hipot, resistance, inductance and leakage tests are available.
- Control
- PLC & Servo Motor
- Power
- AC 220V, 50/60Hz, 500W
- Weight
- 300 kg
Features
- Suitable for low or high/ vertical and horizontal transformer test.
- Manual load to conveyor, auto feeding, auto testing, NG part auto unloading and PASS part auto sort to tray or conveyor deliver to the next production process.
- Sensor auto-detects material on the track when loading core/coil.
- Can be connected to operation & production lines.
- High productivity, stability and efficiency.
- Optional test parameters: Surge test; Hipot test, resistance test, Inductance test; leakage test etc.
Specifications
| Operation | Control Touch Panel interface |
|---|---|
| Control | PLC & Servo Motor |
| Air Pressure | 3 kg/cm² |
| Electric Source | AC 220V, 50/60Hz, 500W |
| Unit Dimension | 1000(L) × 500(W) × 1100(H) mm |
| Unit Weight | 300 kg |
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
