Machines
53 machine lines in eight families, in the order a coil moves through the factory. Filter by family or search by model number.
Station 01 · 6 machines

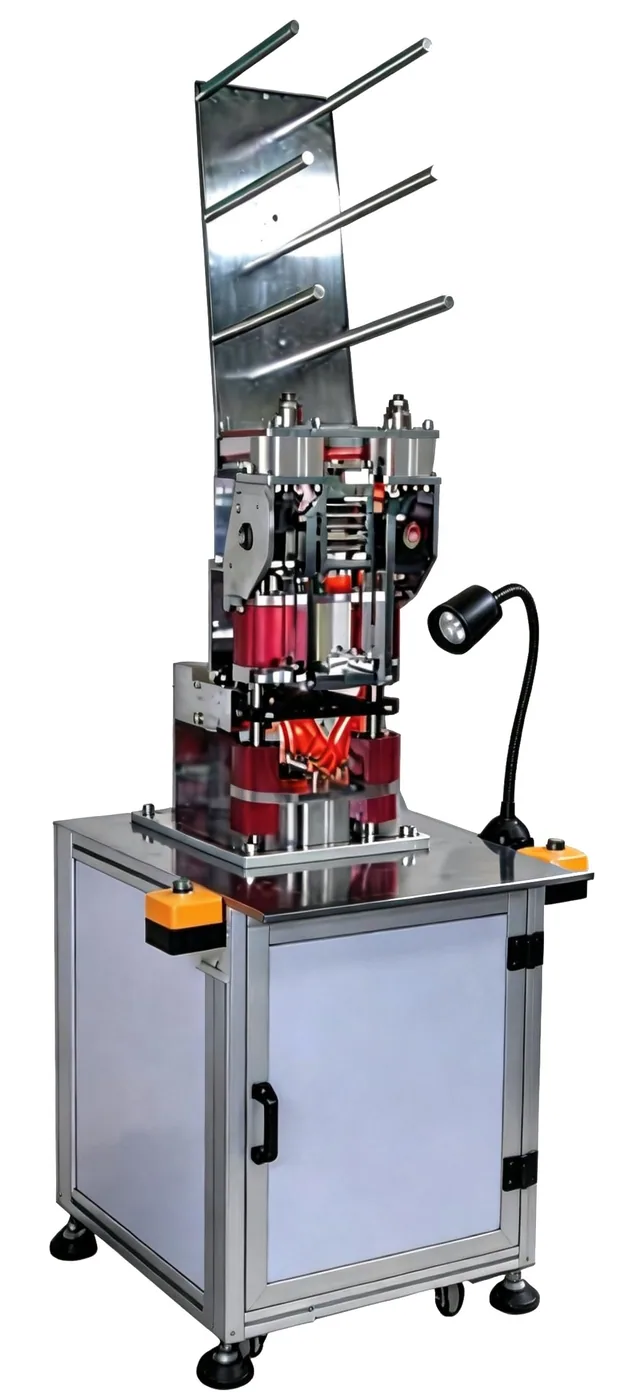

Pin & lamination insertion

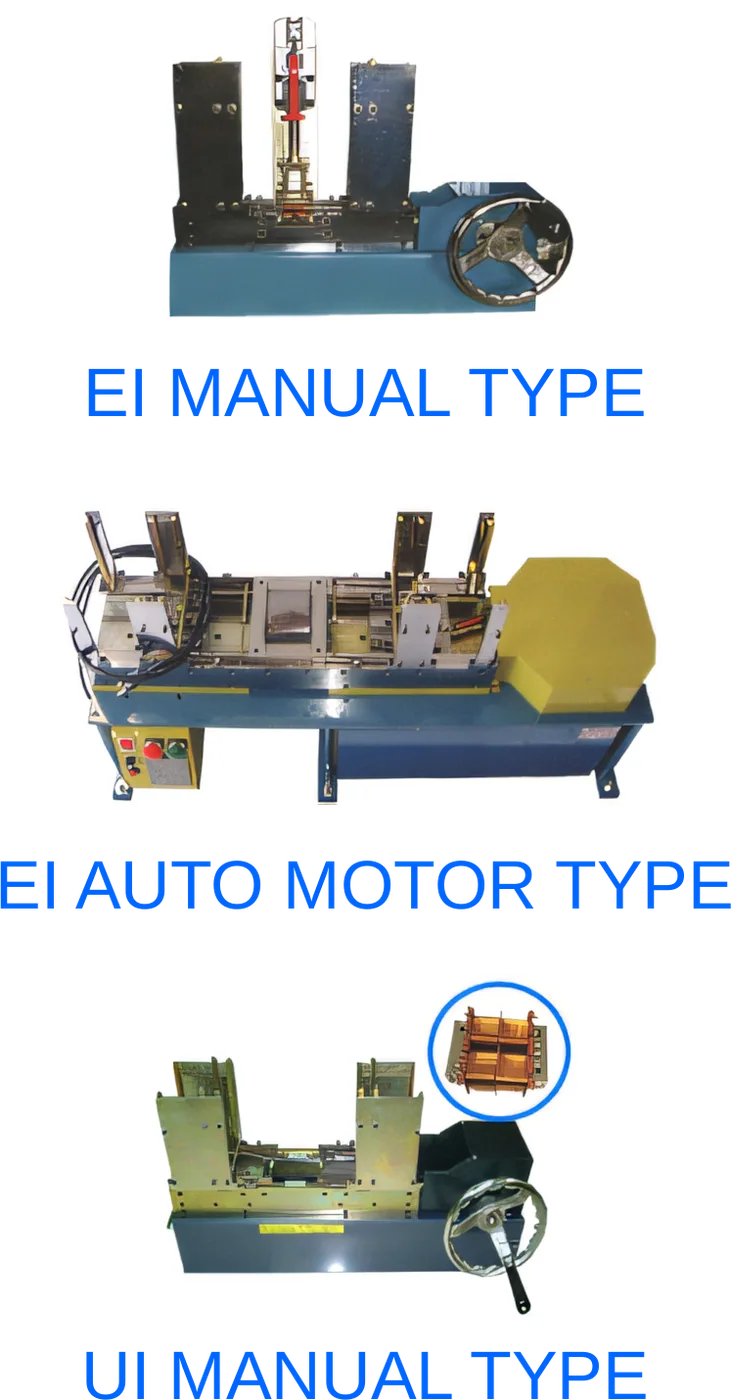

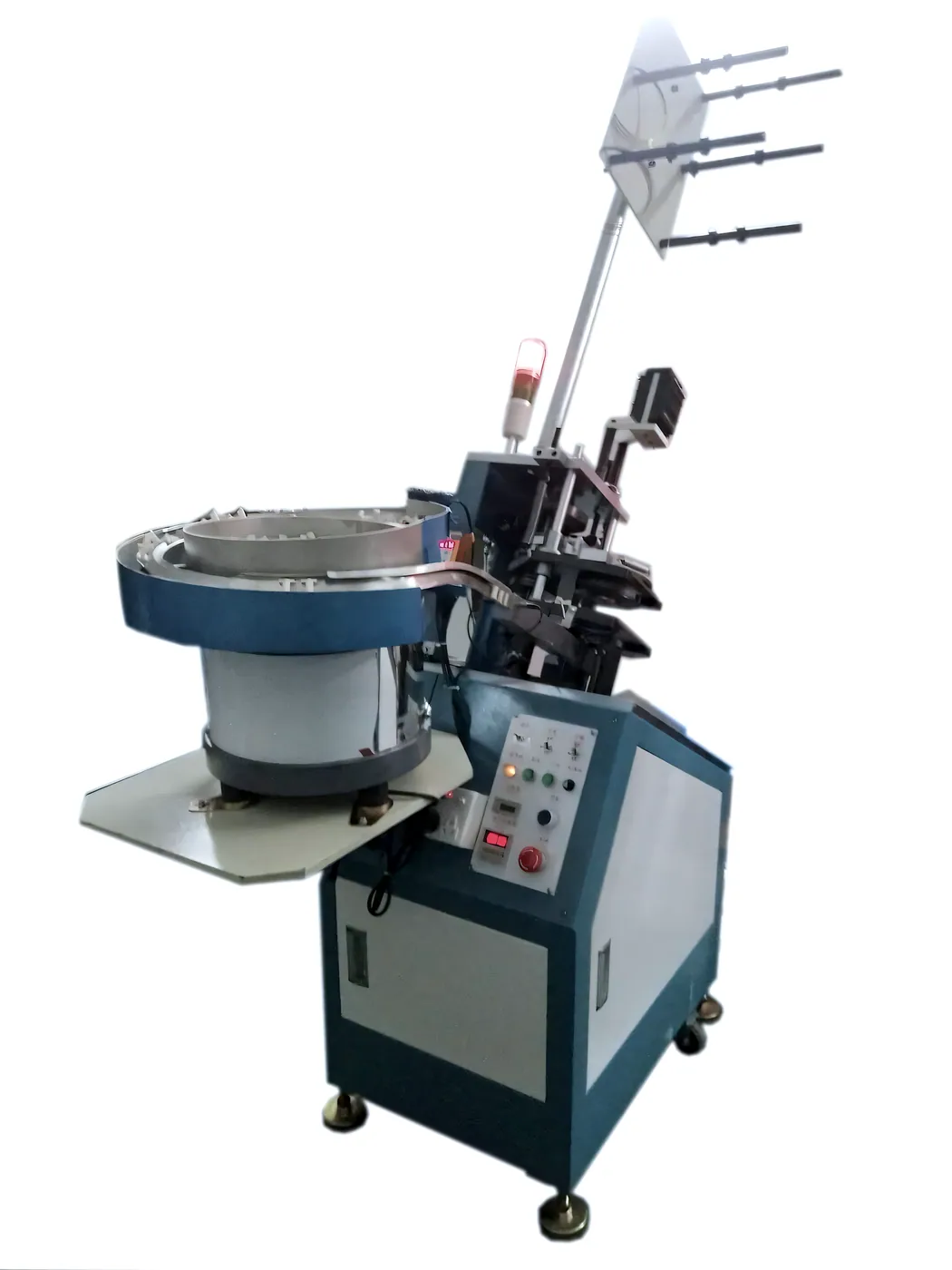

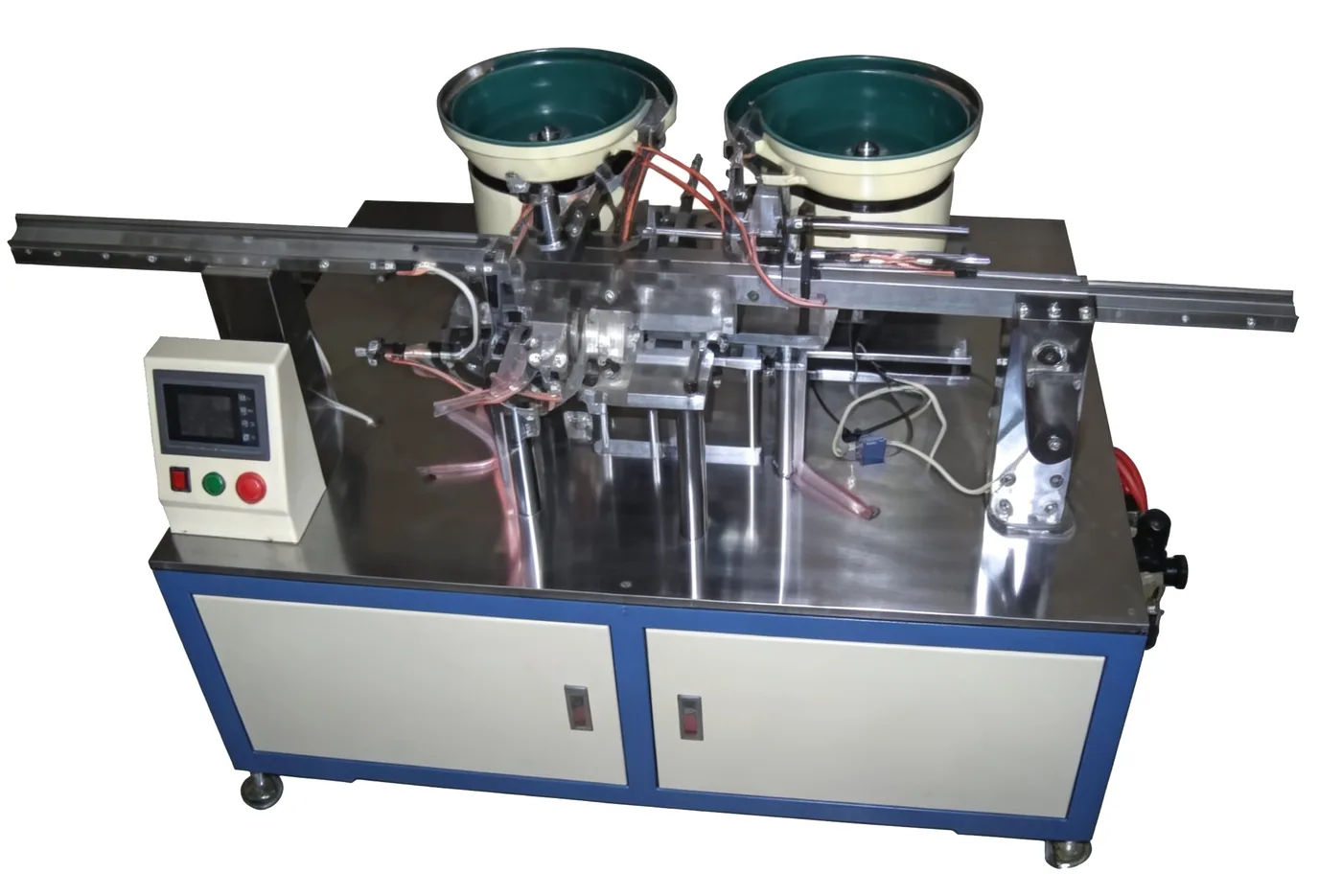

Pins, tab terminals and EI laminations pressed into bobbins and cores.
Station 02 · 5 machines
Coil winding
CNC winders from single-spindle bench units to 16-spindle automatics, plus sleeving, toroidal and large-transformer winders.
PME-8008 / 8012 / 8016 / 8020
Multi-Spindle CNC Coil Winding Machine
- Spindles
- 8 / 12 / 16 / 20
- Spindle speed
- 12,000 rpm
PME-8101 / 8102 / 8103 TUWT
Auto Sleeving, Winding & Taping Machine
- Wire range
- 0.12–0.80 mm
- Winding speed
- Up to 10,000 rpm

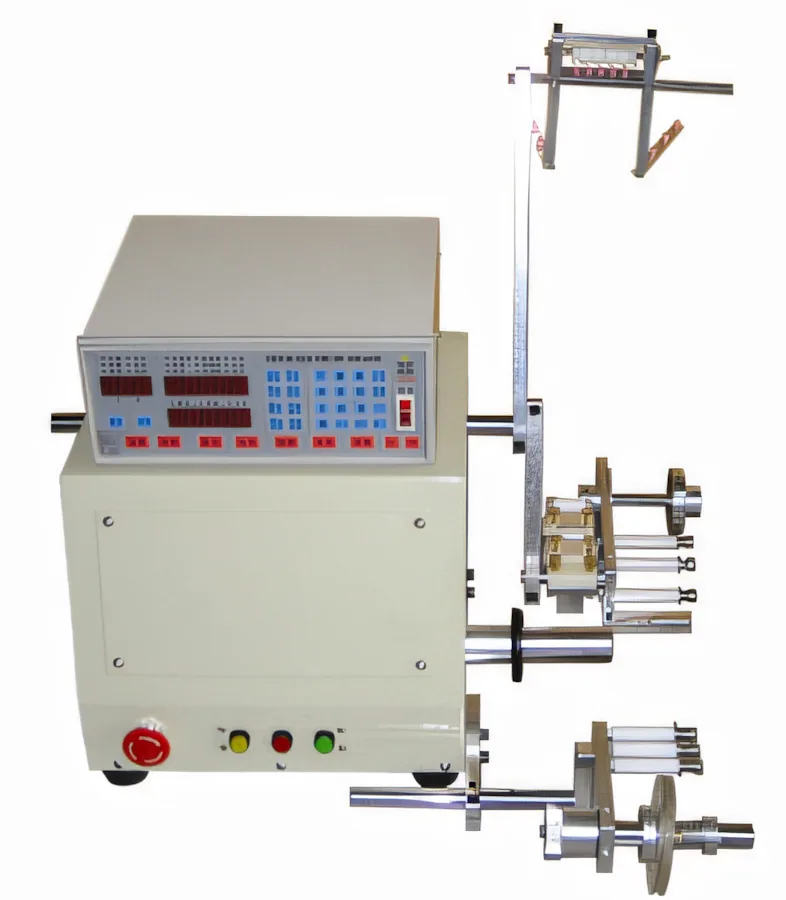

PME-801 / 801F / 801C / 802 / 802F / 804F
CNC Coil Winding Machines
- Spindles
- 1 / 2 / 4
- Wire diameter
- 0.02–3.0 mm

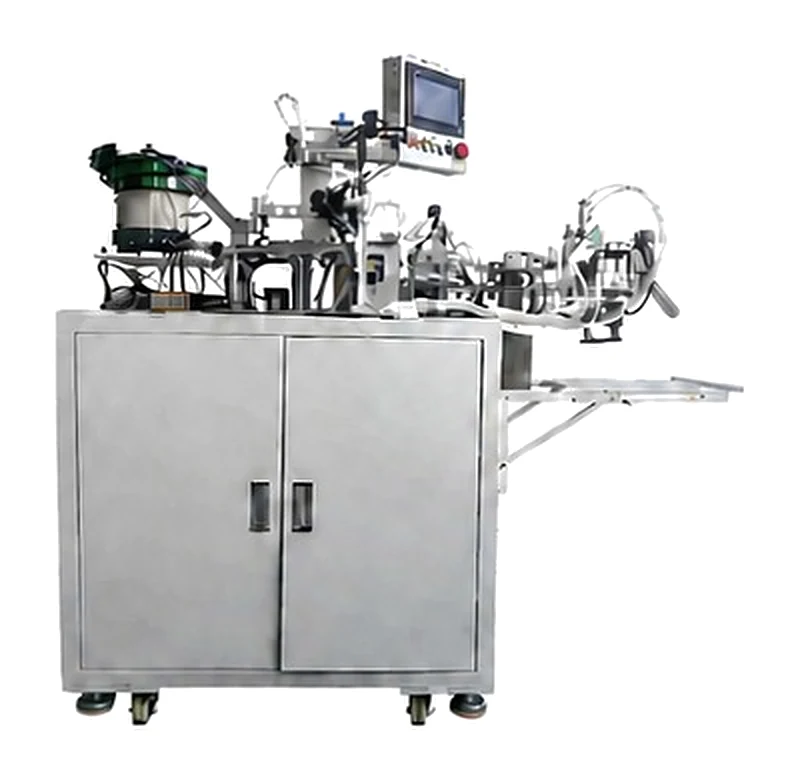

PME-201ZS
Automatic Toroidal Winding Machine
- Wire diameter
- 0.25–0.8 mm
- Winding speed
- Up to 200 turns/min
Station 03 · 9 machines

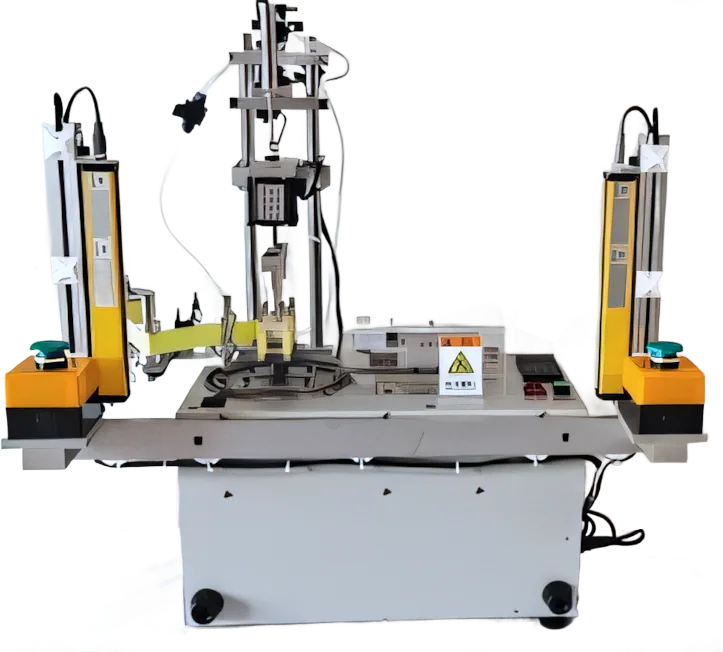

Taping & core assembly

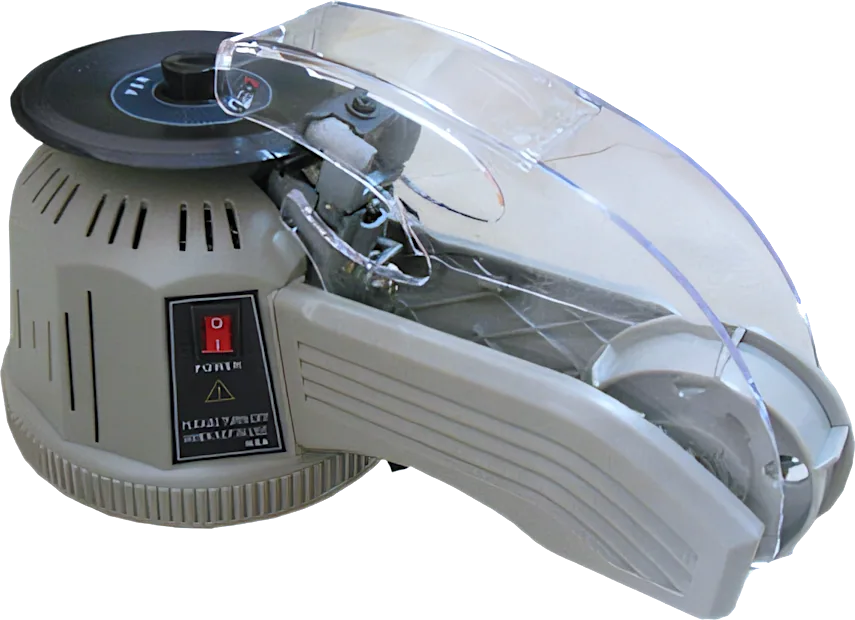

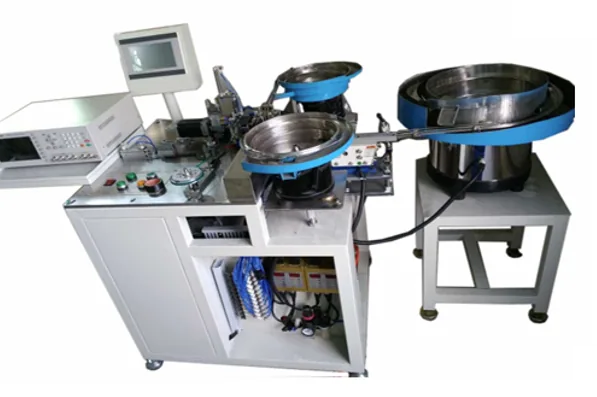

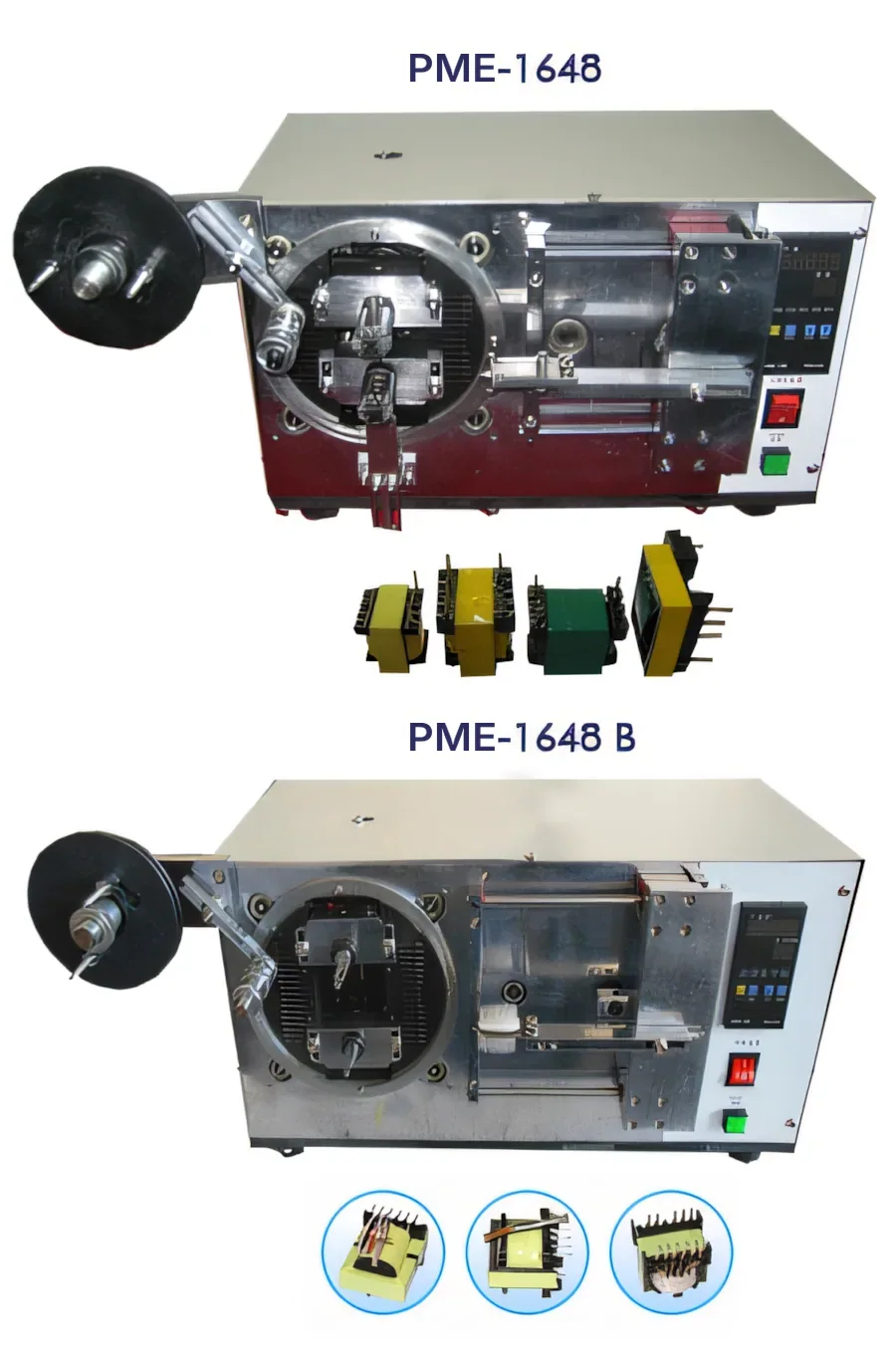

Coil and core taping, EE core insertion, copper foil taping and tape cutting.
PME-1060MC
EE Core Taping, Testing & Tray Unloading Machine
- Process
- Tape, test, sort, tray
- Control
- PLC & servo motor

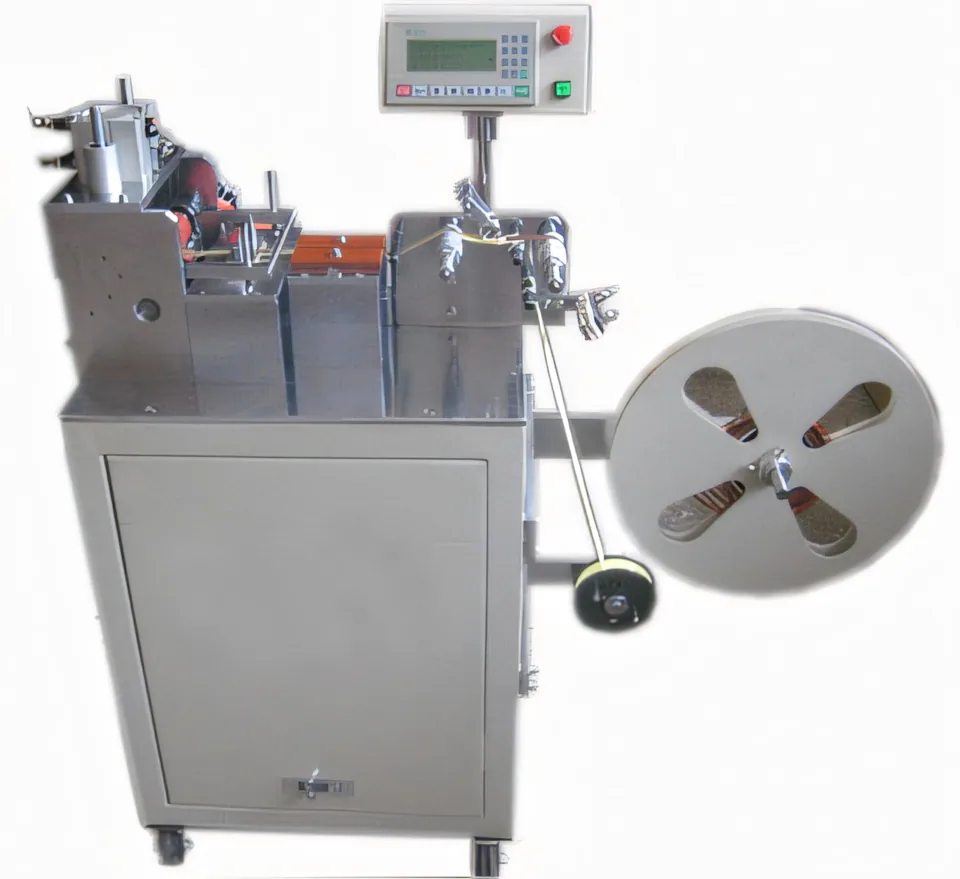

PME-220CF
Copper Foil Taping & Cutting Machine
- Cutting length
- Free adjustment
- Copper foil width
- 8–30 mm
Station 04 · 15 machines

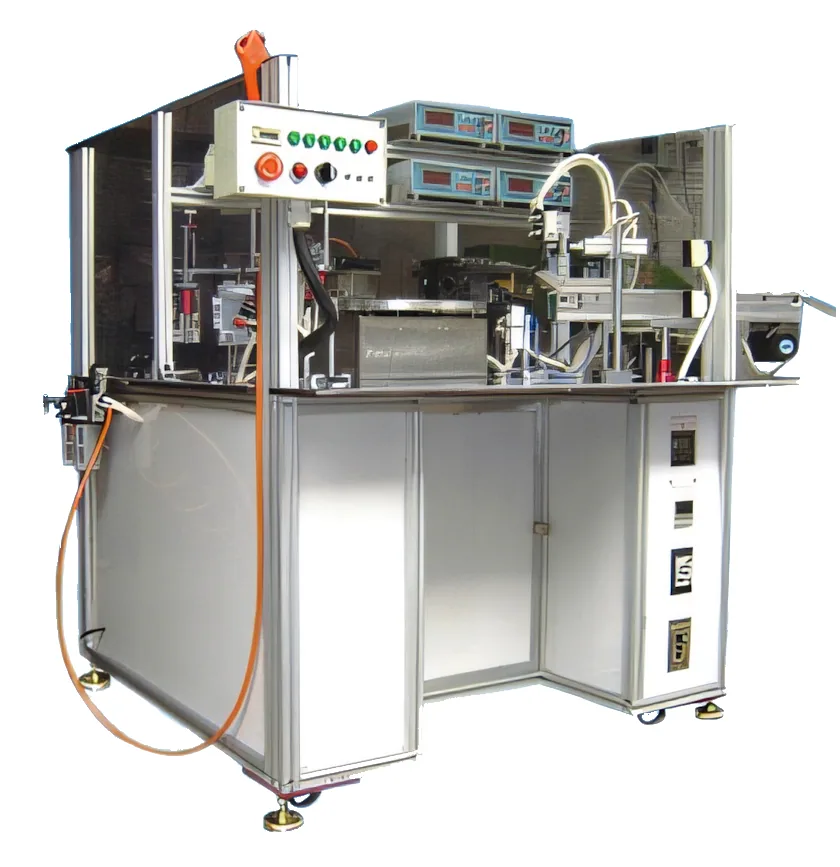

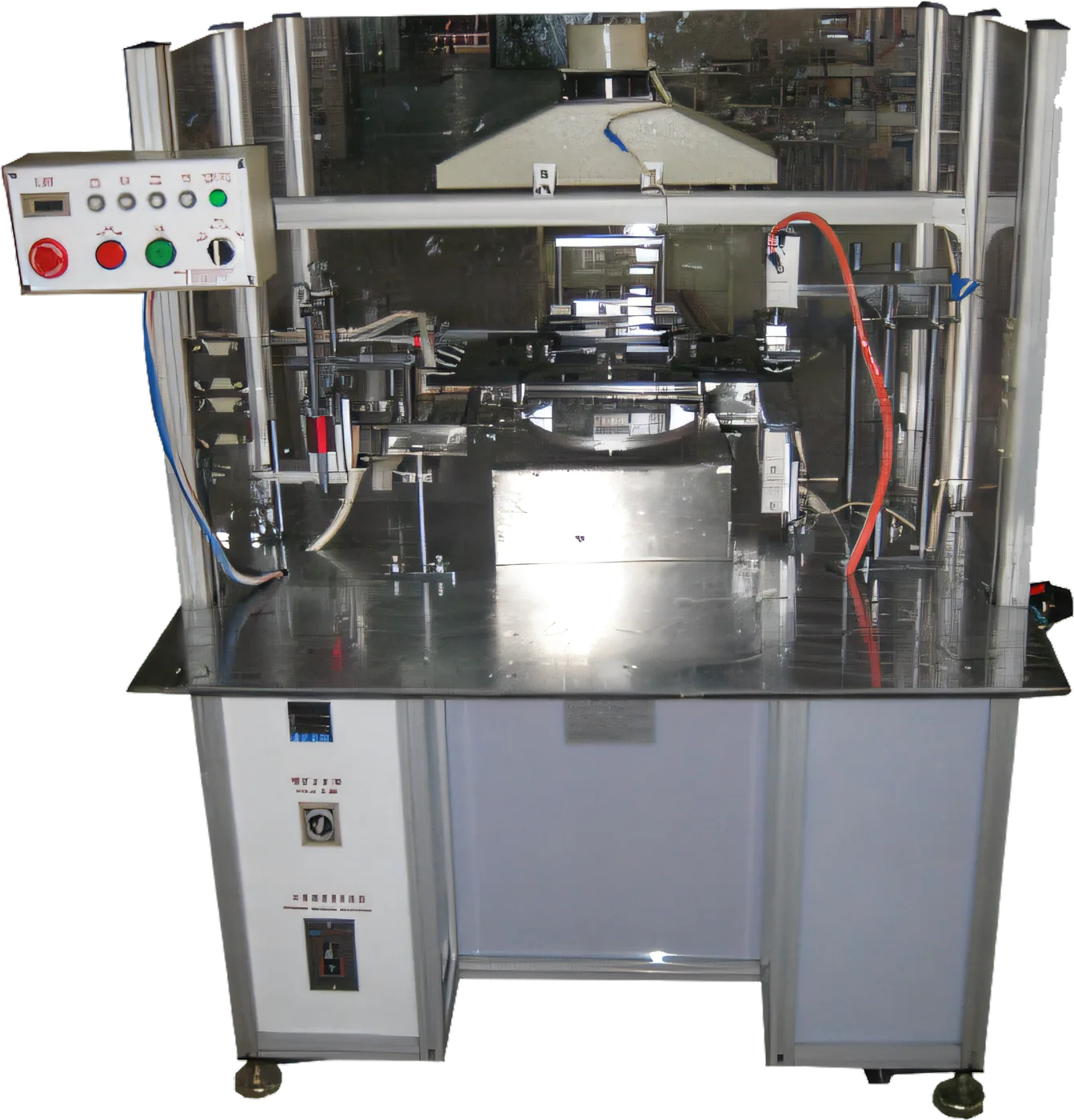

Soldering

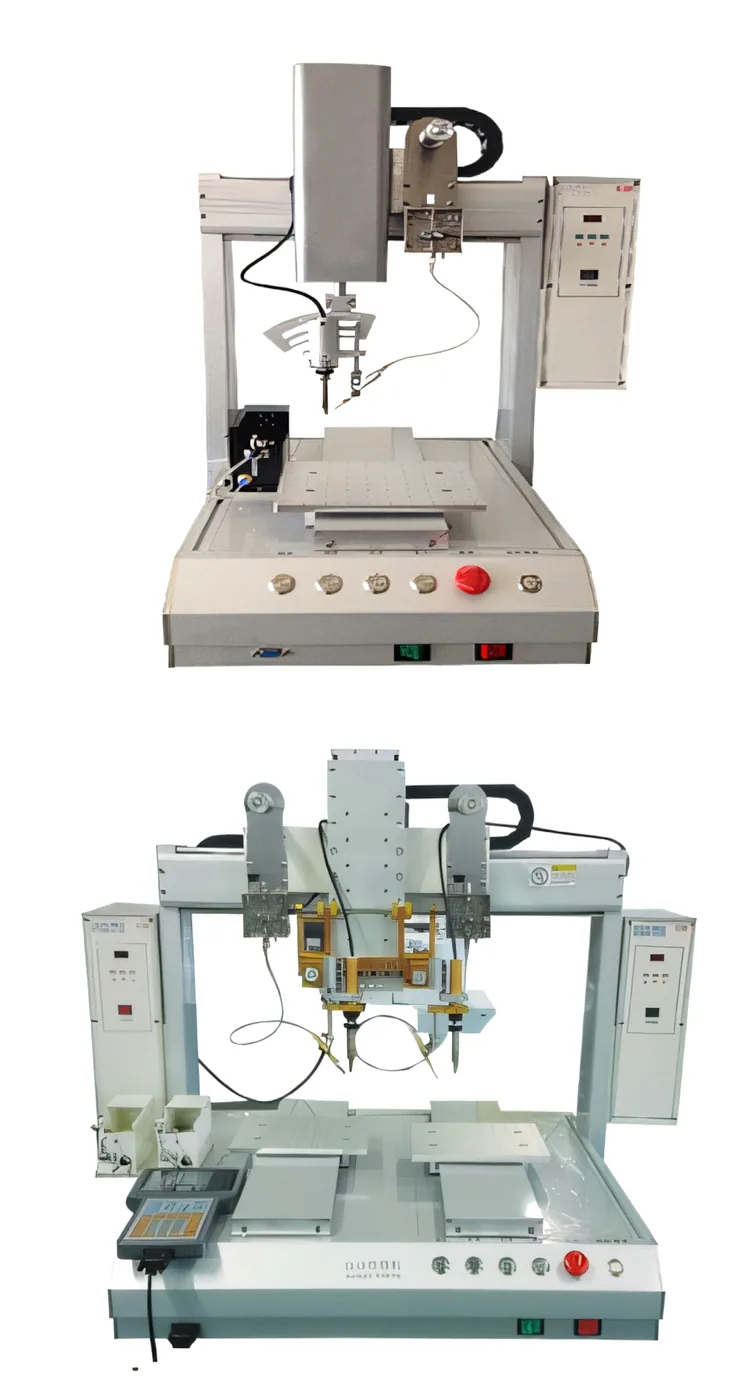

Dip soldering with auto flux, titanium solder pots and XYZ robotic soldering.
PME-03BCM
Fully Automatic Dip Soldering Machine, 3-Way Loading
- Loading
- Bowl, conveyor or manual
- Control
- PLC & servo motor

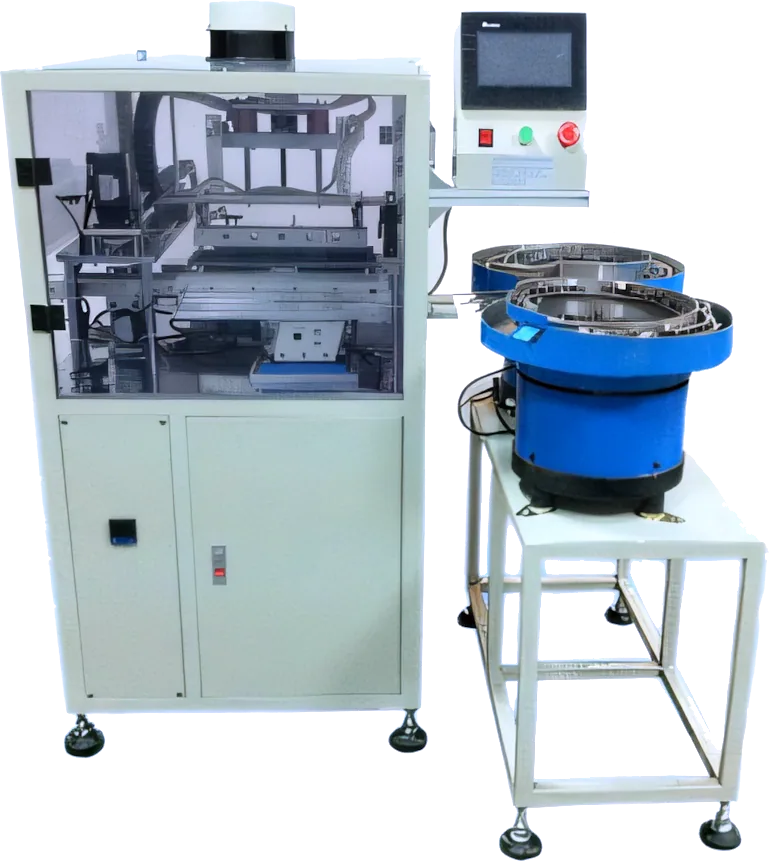

PME-03VB
Fully Automatic Dip Soldering Machine, Twin Bowl
- Control
- Servo Motor & PLC
- Power
- AC 220V, 50/60Hz

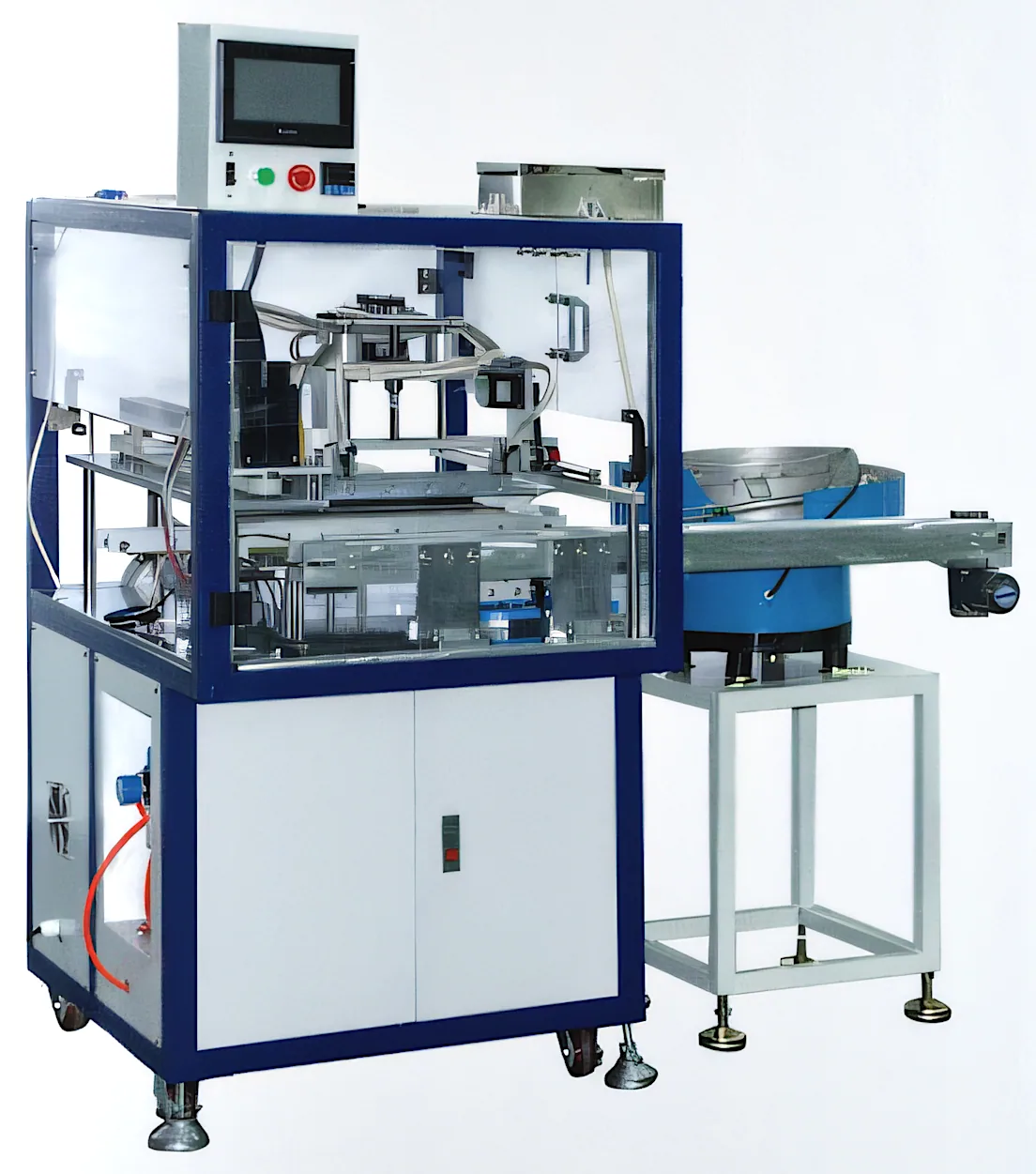

PME-03CB
Fully Automatic Dip Soldering Machine, Conveyor Feed
- Control
- Servo Motor & PLC
- Power
- AC 220V, 50/60Hz, 3500W

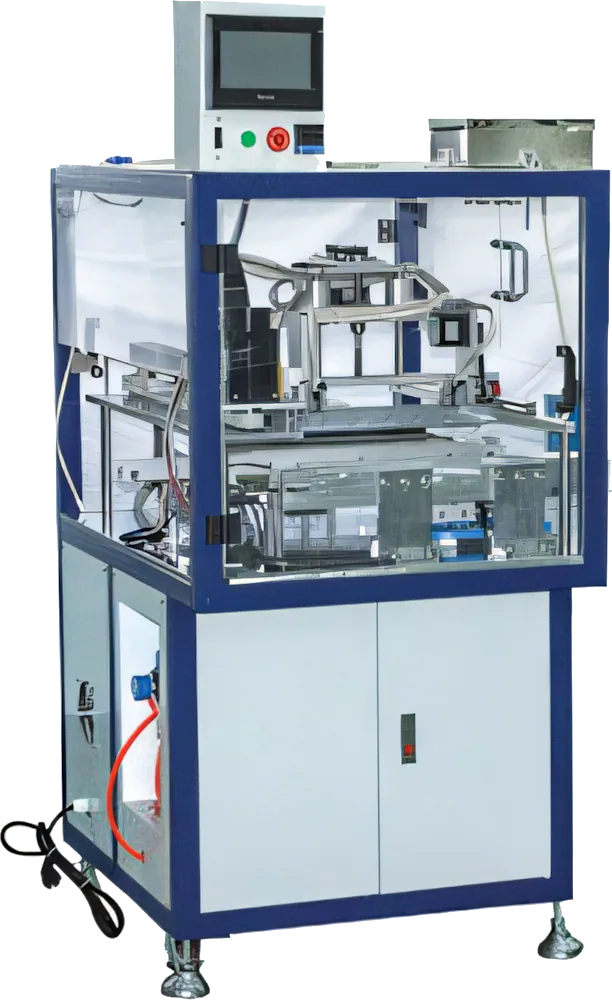

PME-03M
Automatic Dip Soldering Machine, Manual Load
- Control
- Servo Motor & PLC
- Power
- AC 220V, 50/60Hz, 3500W

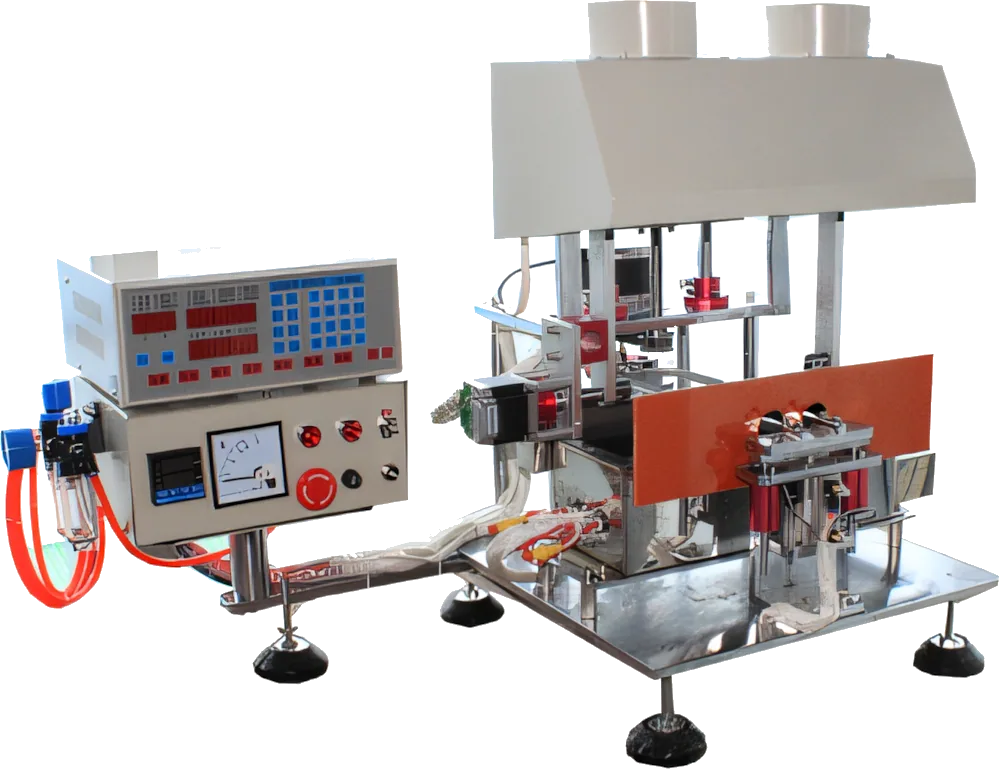

PME-02R
Angle Dip Soldering Machine, CNC
- Cycle time
- 10–20pcs/12sec
- Inner tank
- 300(L) × 100(W) × 60(H) mm

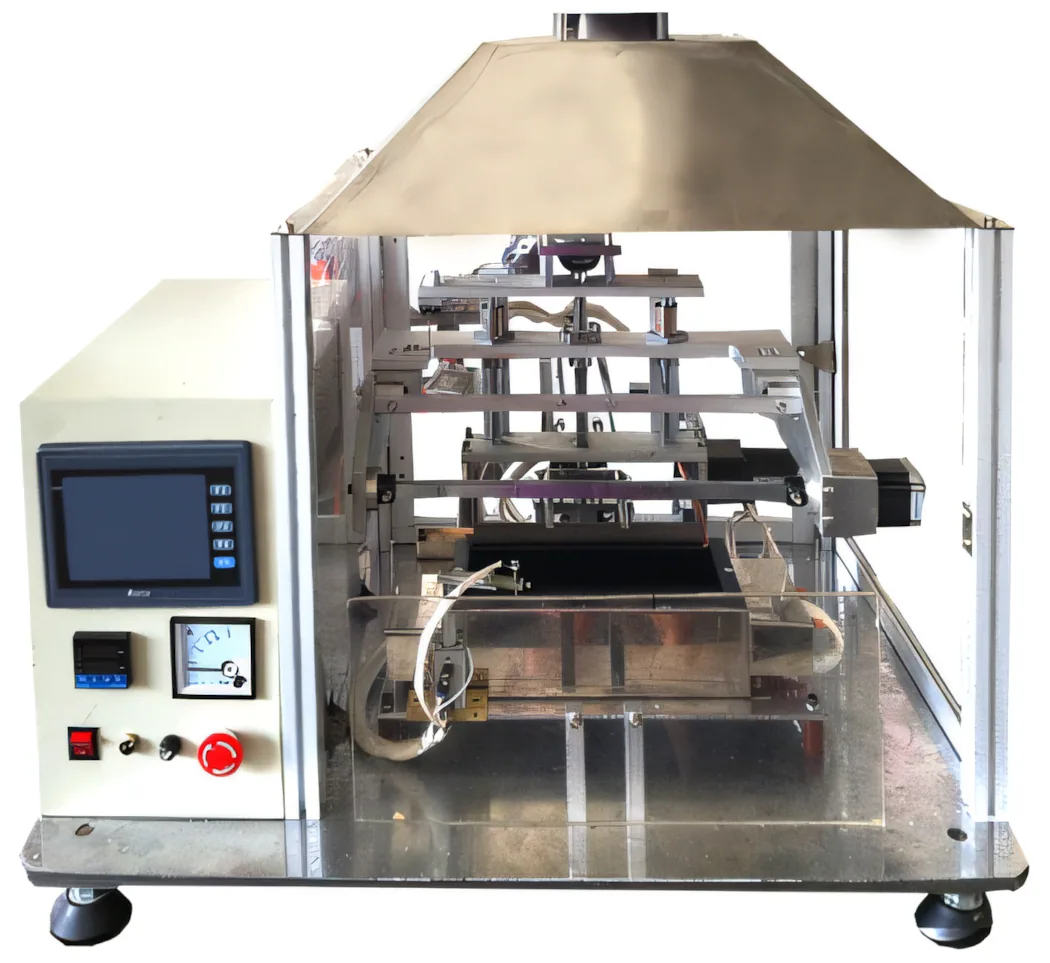

PME-02R PLC
Angle Dip Soldering Machine, PLC
- Cycle time
- 10–20pcs/12sec
- Inner tank
- 300(L) × 100(W) × 60(H) mm

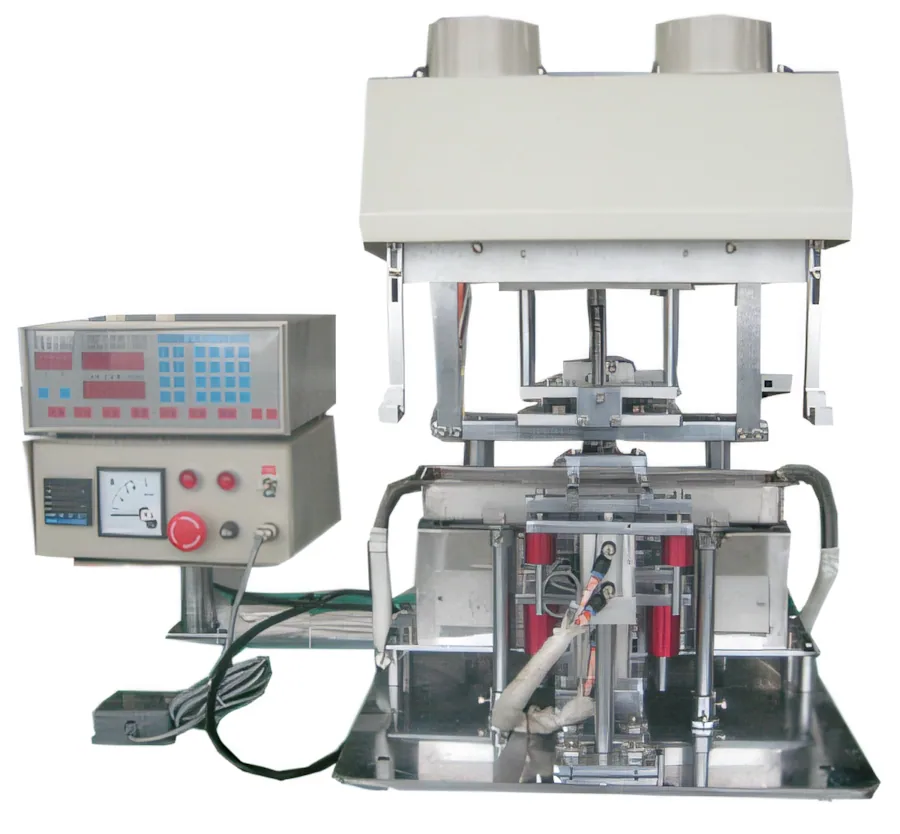

PME-02AF
CNC Dip Soldering Machine, Auto Flux
- Cycle time
- 10–20pcs/8sec
- Inner tank
- 300(L) × 100(W) × 60(H) mm
PME-03A / 03B / 03C / 03E / 03H / 03K
Titanium Solder Pots
- Max. temperature
- 600 °C
- Pot
- Lead-free titanium
Station 05 · 3 machines

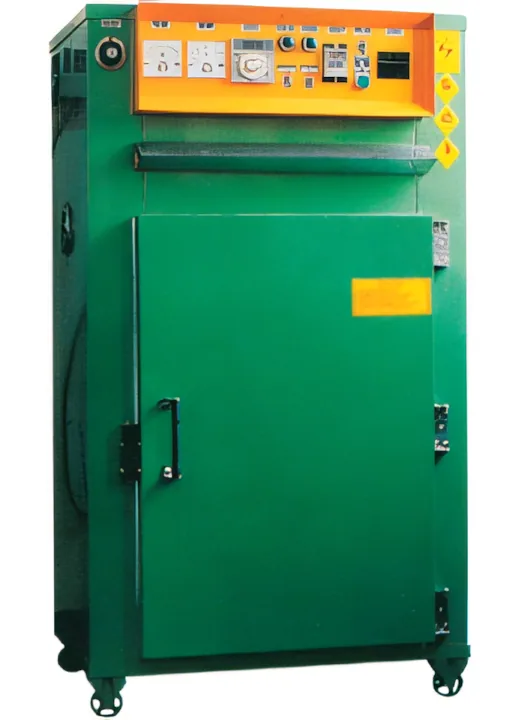

Varnishing & drying
Varnish impregnation tanks and hot-air curing ovens.

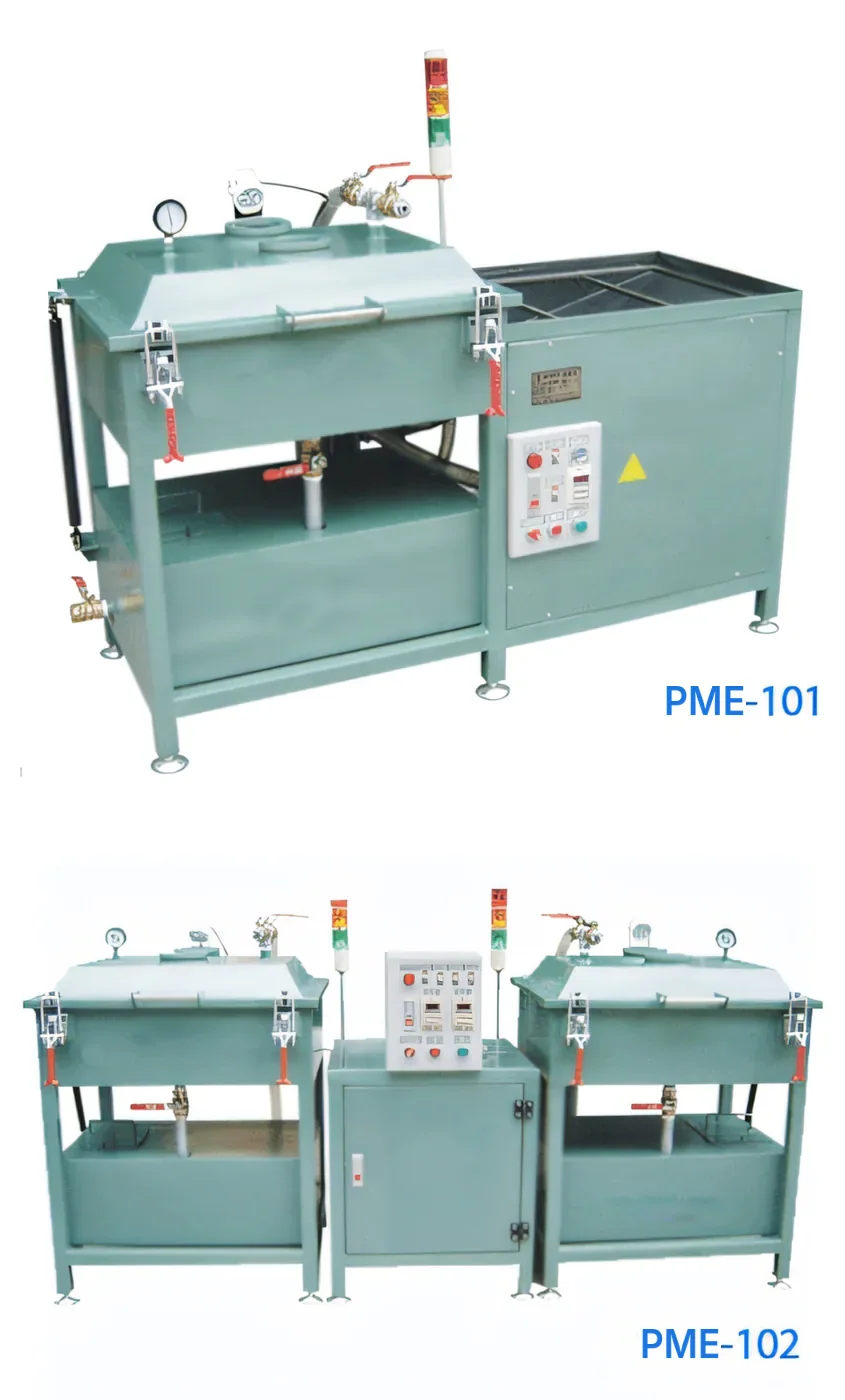

PME-101 / 102
Varnish Impregnation Tank
- Inner size
- L700(L) × 530(W) × 200(H) mm
- Power
- AC 380V, 50/60Hz, 3phase; 1HP
Station 06 · 5 machines

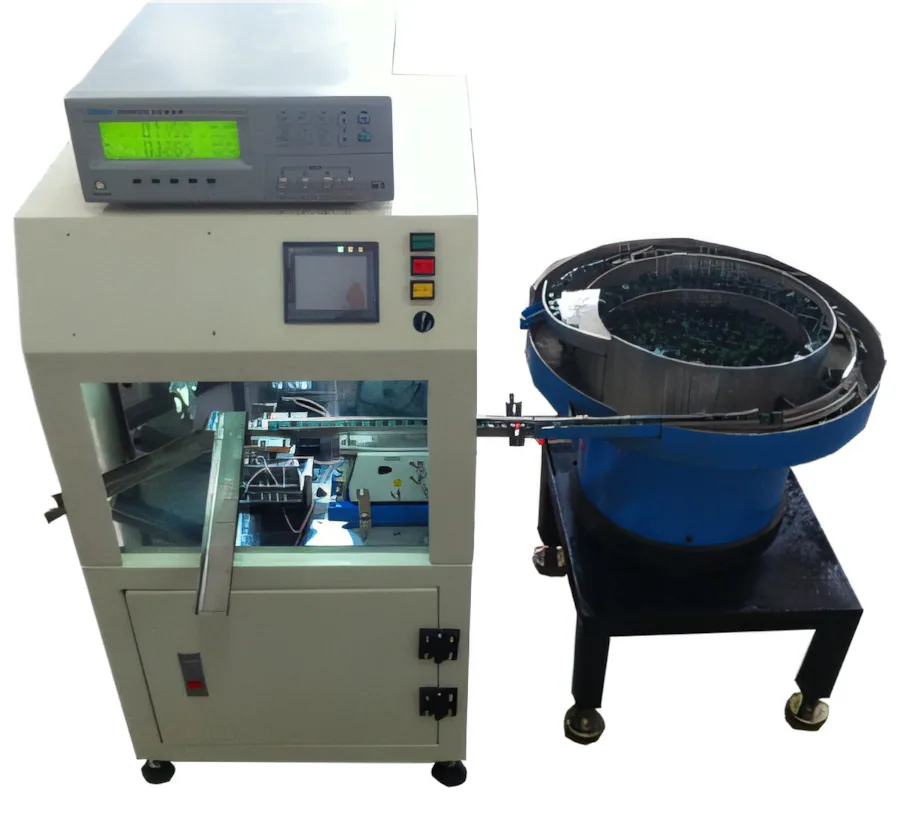

Testing

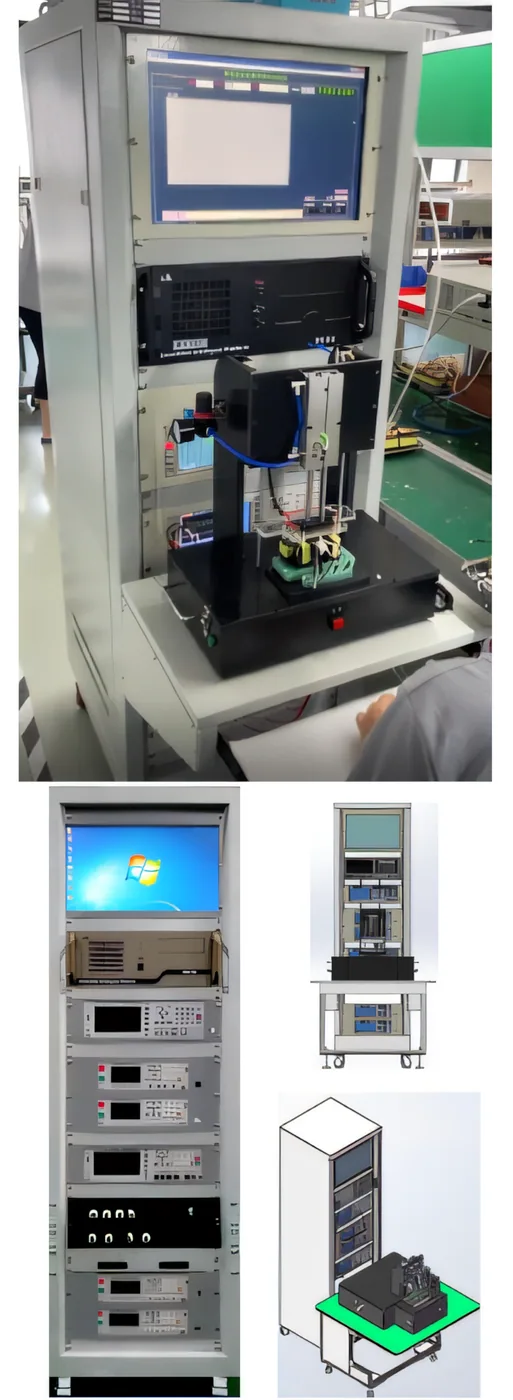

Automatic hipot, inductance and universal testing, with NG sorting and tray unloading.
Around the line · 5 machines

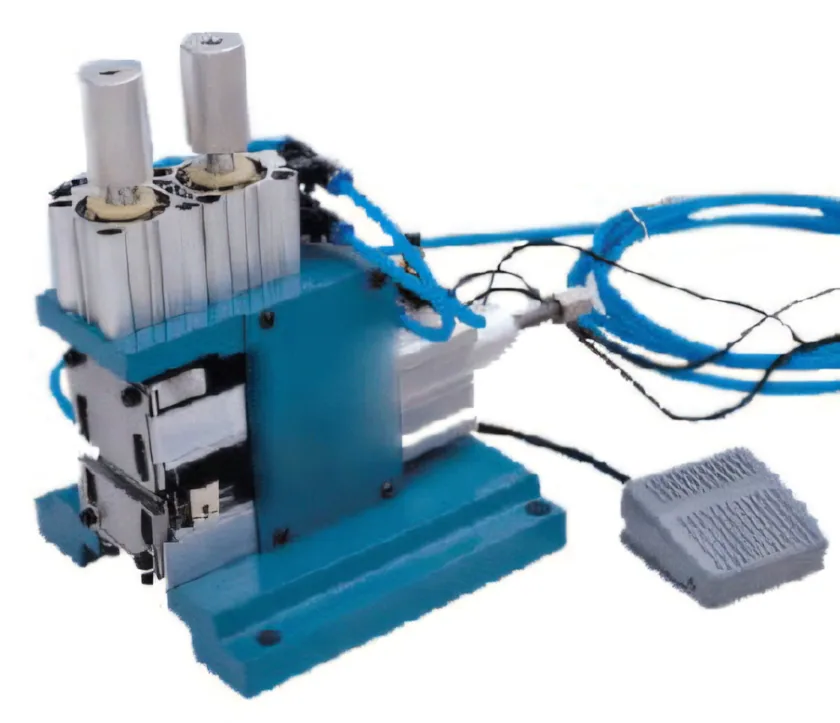

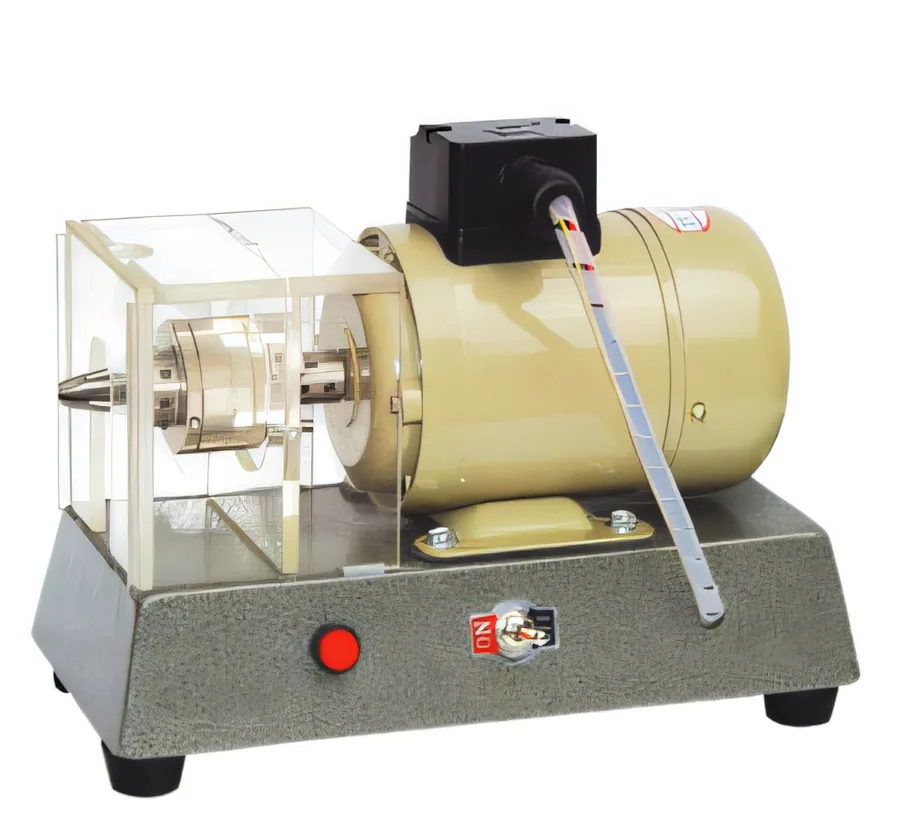

Wire & tube processing

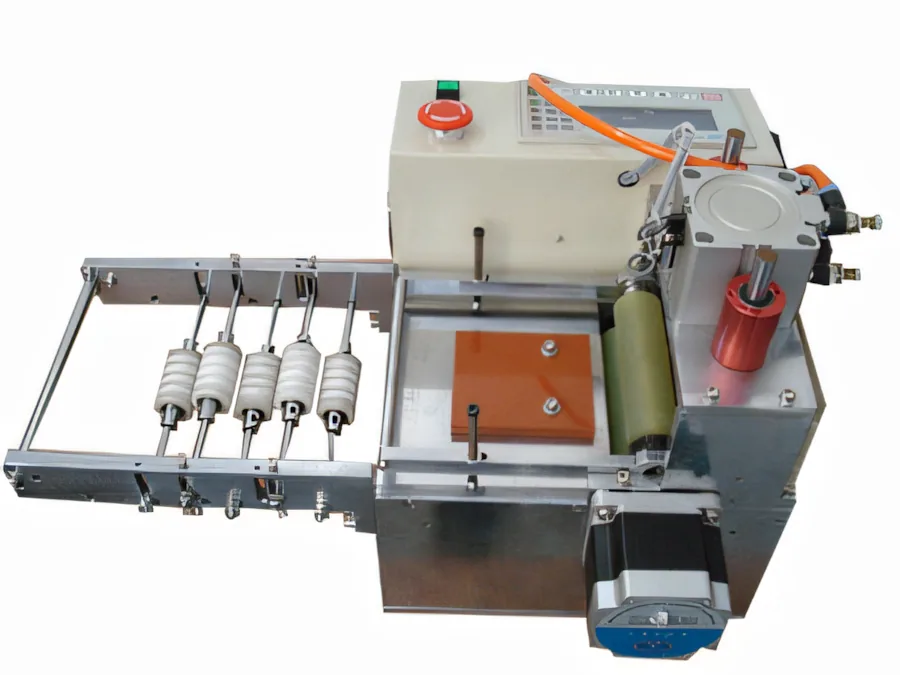

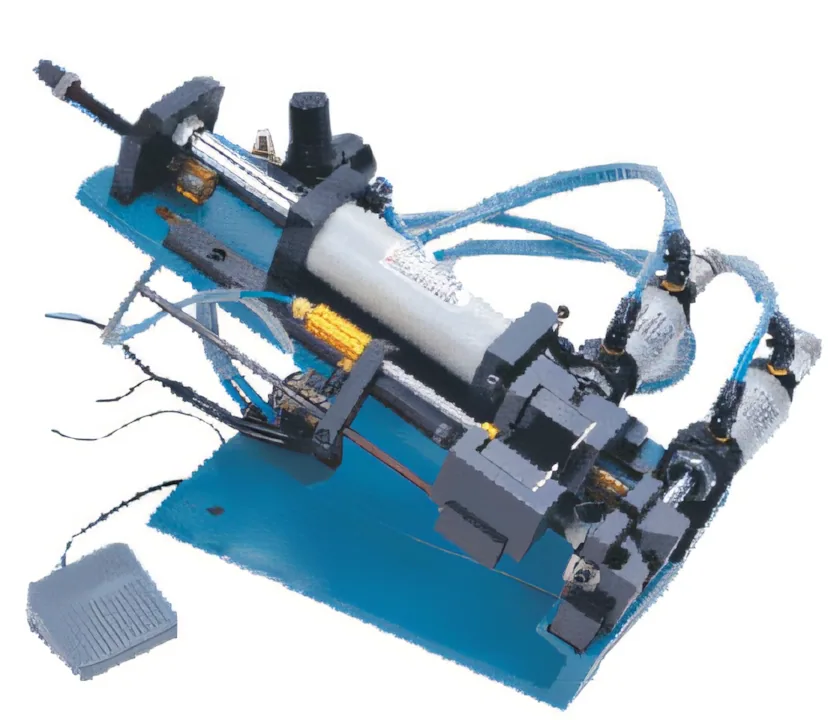

Enamel wire stripping, wire cut-and-strip, and tube and tape cutting.

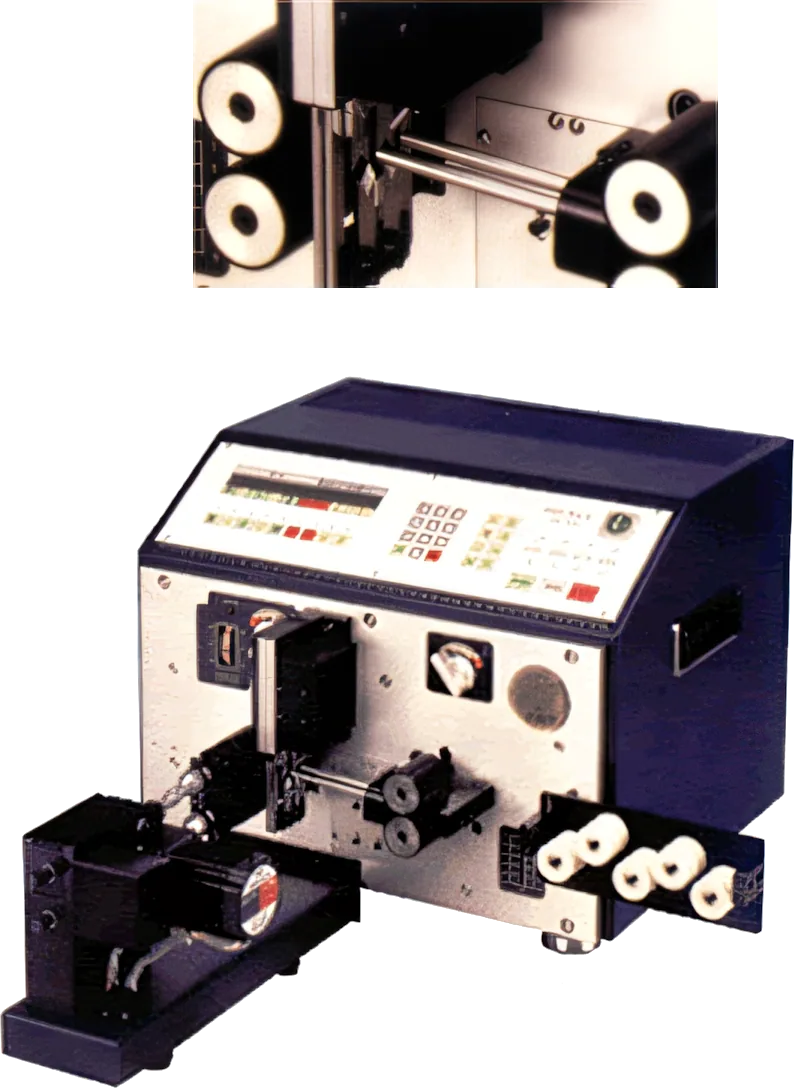

PME-220 / 220T
Automatic Wire Cut & Strip Machine
- Cutting length
- 0.1–99999.9 mm
- Applicable size
- AWG#14~AWG#32
Around the line · 5 machines
Dispensing
XYZ dispensing robots for glue, epoxy, silicone and conductive adhesive.

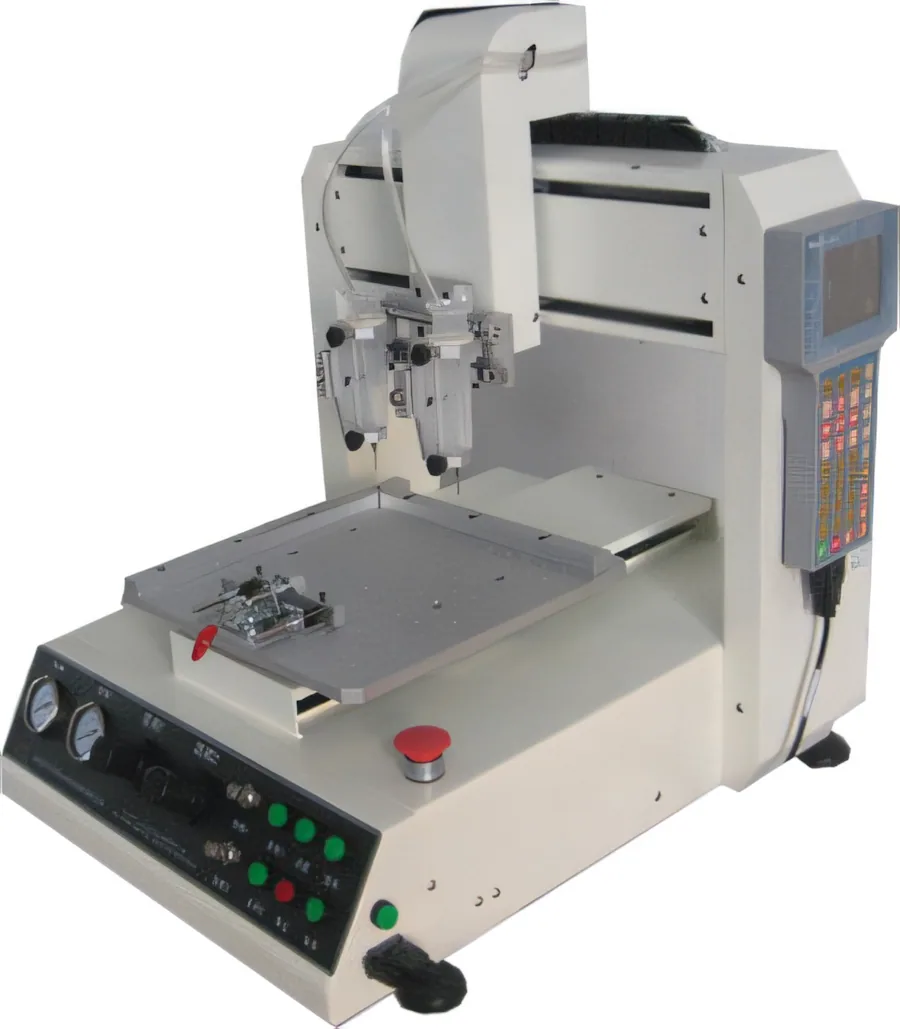

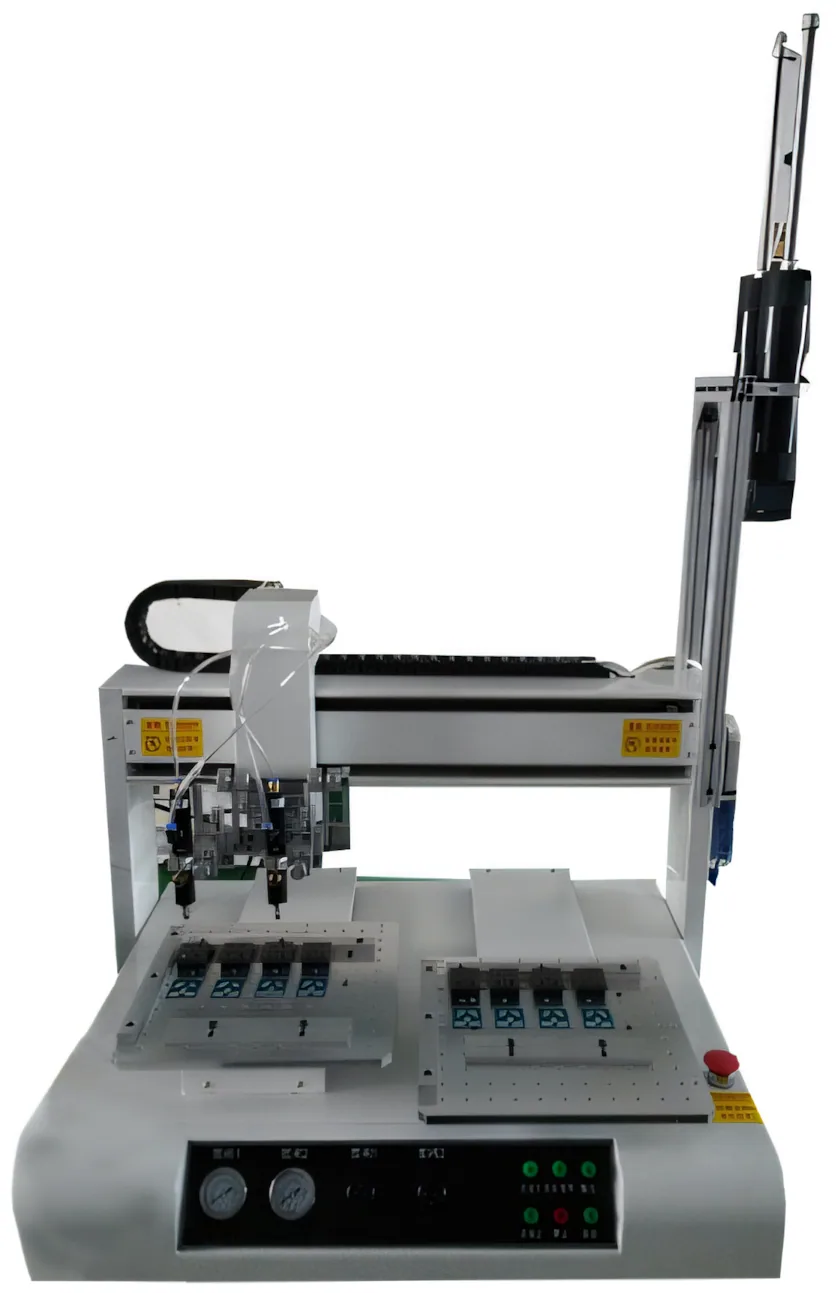

PME-R300B2Y
Dual-Head Dispensing Robot
- Dispensing range
- (X) 600 × (Y) 300 × (Z) 80 mm
- Precision
- ± 0.015 mm

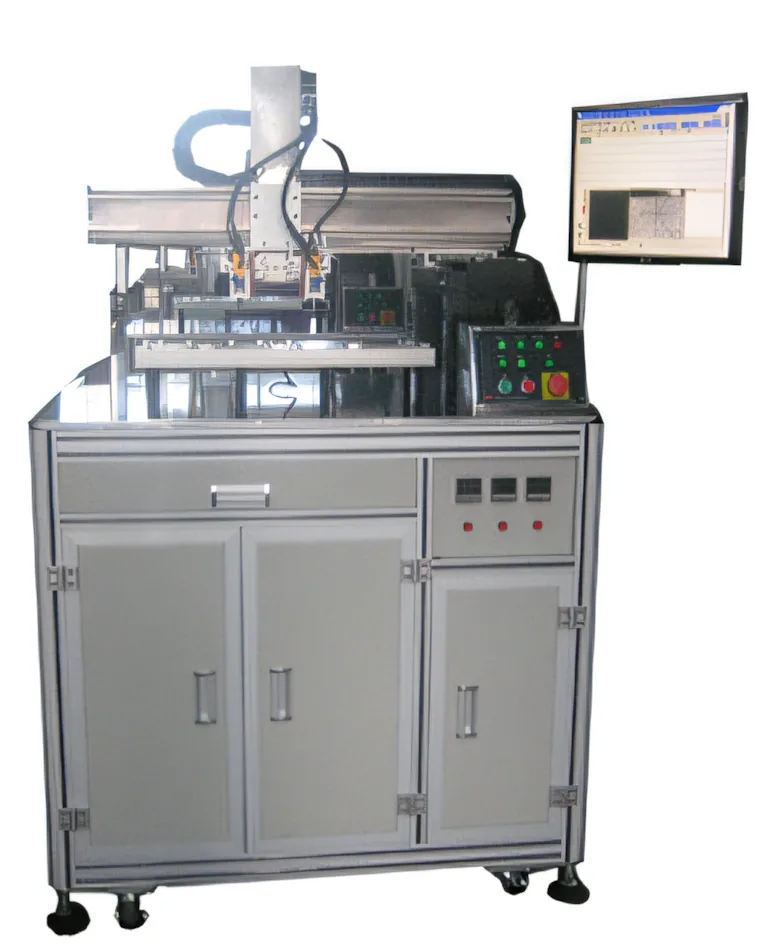

PME-R650A
CCD Vision Dispensing System
- Dispensing range
- (X) 650 × (Y) 300 × (Z) 80 mm
- Precision
- ± 0.015 mm

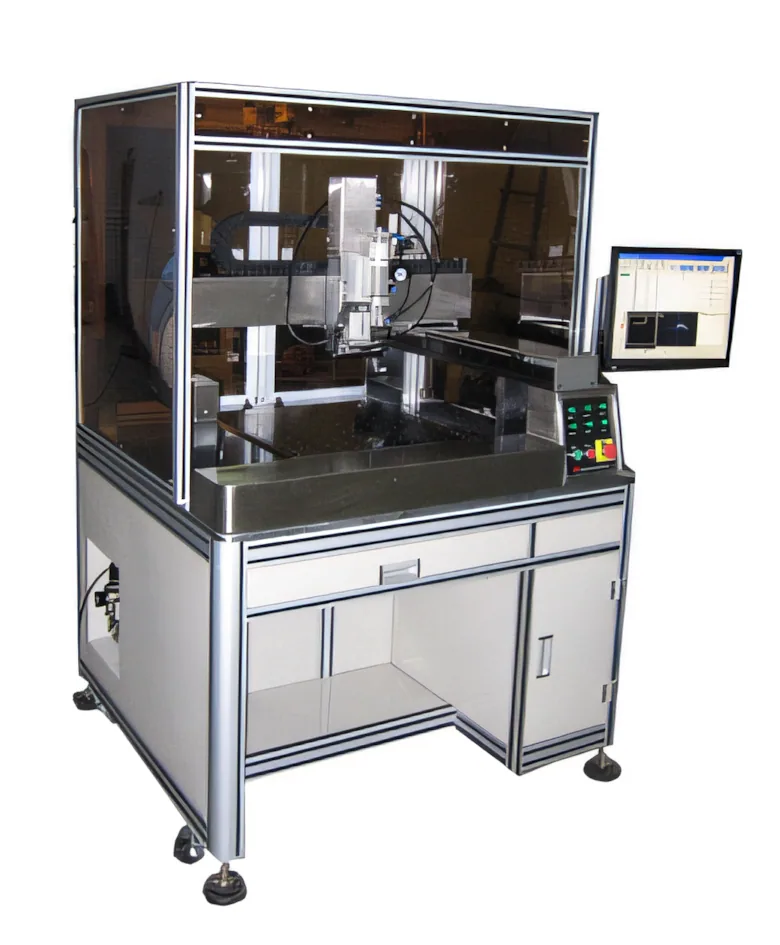

PME-R500A
Conductive Adhesive Dispensing System
- Dispensing range
- (X) 500 × (Y) 500 × (Z) 80 mm
- Precision
- ± 0.015 mm

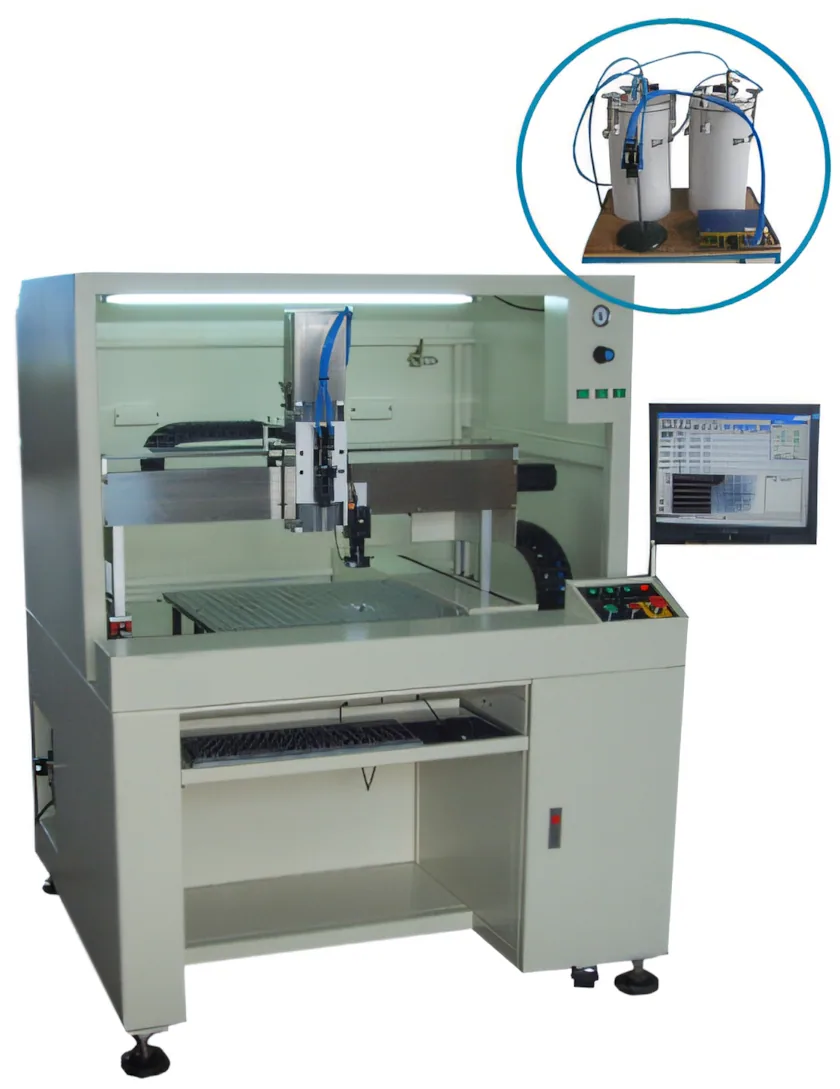

PME-R600A
Two-Part (AB) Dispensing System
- Dispensing range
- (X) 600 × (Y) 500 × (Z) 80 mm
- Precision
- ± 0.015 mm
No machines match that search. Try a model number such as 1060 or a process such as soldering.
Tell us what you make
Share your coil, transformer or relay and the output you need, and we'll recommend a machine or a line.
