Station 03 · Taping & core assembly
PME-1060MC
EE Core Taping, Testing & Tray Unloading Machine
Tapes hand-inserted EE cores, tests every coil, sorts out NG parts and unloads good coils to trays, fed from a vibratory bowl and linear feeder.
- Process
- Tape, test, sort, tray
- Control
- PLC & servo motor
- Power
- AC 220 V, 800 W
- Weight
- 150 kg
Features
- Suitable for vertical and horizontal transformer EE core insertion and taping
- Manual EE core insertion, automatic core taping, automatic coil testing and sorting of NG & GOOD coils, automatic unloading to tray
- Functional, stable, high efficiency, labor saving and simple operation
Specifications
| Operation | Control Touch Panel Interface |
|---|---|
| Control | PLC & Servo Motor |
| Air Pressure | 4-6 kg/cm² |
| Electric Source | AC 220V, 50/60Hz, 800W |
| Unit Dimension | 850(L) × 700(W) × 1120(H) mm |
| Unit Weight | 150 kg |
Process flow
Process flow
- Vibratory bowl feeder
- Core fixing (sucking core pickup)

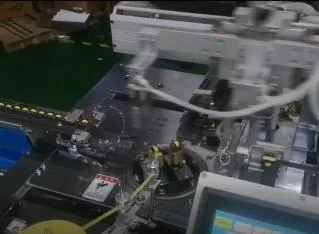

- Core taping
- Auto universal testing
- Auto sort NG
- Automatic tray unloading

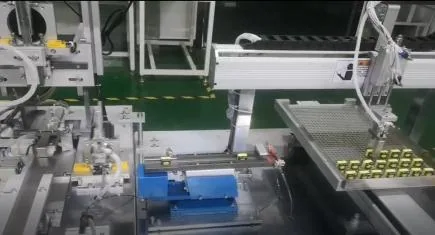

Stations: Feeder & taping station, Testing station, Tester, NG sort and unload to tray
Configuration
Main components
| Component | Brand |
|---|---|
| Servo Motor | Inovance Servo |
| PLC | Xinje |
| HMI Touchscreen | Xinje |
| Guideway | AirTac |
| Leadscrew | TBI |
| Solenoid Valve | AirTac |
| Cylinder | AirTac |
| Tester | Zhixin |
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
