PME-R650A

CCD Vision Dispensing System

Servo-driven XYZ dispensing over 650 × 300 mm with a CCD camera for route positioning, tracking and production counting, plus a heated pistol and work area.

Dispensing range: (X) 650 × (Y) 300 × (Z) 80 mm
Precision: ± 0.015 mm
Max. speed: 500 mm / sec
Power: AC 220V, 50/60Hz ; 1.5KW

Enquire about this machine Product sheet (PDF)

Features

Use Windows2000/XP Operating System
Interpolate lines or arcs for 3 dimensional dispensing that accurate continuous path motion
Large data storage capacity. Software with functions of lines, area, lens setting
Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking
Adopted with "Panasonic" servo motor for XYZ motion control, deliver a precise and stable speedy motion dispensing
Employs a CCD camera which allows to view and precise position the dispenser route, provides tracking route, production counting. Save times in adjusting work & increase productivity
Plastic pistol and working area with heating system
A variety of dispensing can be fulfilled

Applications

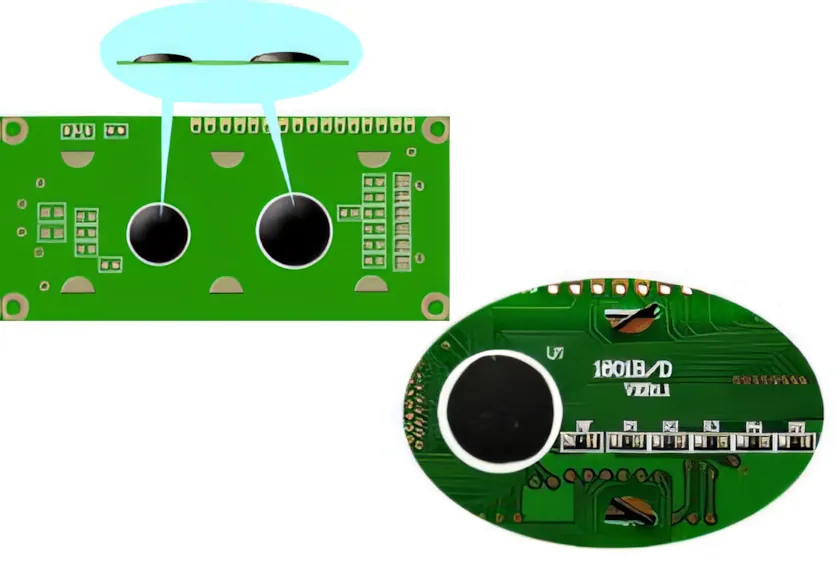

Applied to mobile phones, computer case, optical drives, printers, ink clip, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators, semiconductors, and other electronics or SMT devices, clocks, toys, medical equipment etc.

Suitable for

Fluid Dispensing materials: e.g. UV glue, EPOXY (vinyl), white glue, EMI conductive glue, SILICON, epoxy, instant glue, silver glue, red glue, paste, thermal grease, anti-paste, lacquer, screw fixation, liquid dispensing etc.

Specifications

Dispensing Range	(X) 650 × (Y) 300 × (Z) 80 mm
Max. Speed	500 mm / sec
Precision	± 0.015 mm
Repeatability	± 0.015 mm
Operating System	Windows2000/XP
Drive System	Panasonic servo motor / Needle bearing
Electric Source	AC 220V, 50/60Hz ; 1.5KW
Unit Dimension (mm)	1200(L) × 950(W) × 1600(H)
Unit Weight	450 kg
Optional Device	1. MARKER with auto positioning & adjusting function 2. Automatic in/out twin trays system 3. Glue pistols, automatic tray heating system 4. Multiple dispensing needles, goes with a variety of glue pistol and plastic barrel connection
