Station 04 · Soldering
PME-02K
Dip Soldering Machine
A compact dip solderer with automatic dross cleaning, adjustable solder height and a titanium pot rated to 600 °C.
- Inner tank
- 300(L) × 100(W) × 30(H) mm
- Power
- AC 220V, 50/60Hz, 2000W
- Weight
- 20 kg
Features

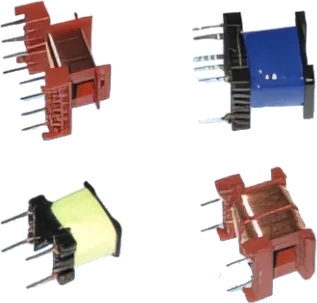

- Applicable for Vertical or Horizontal Coil or Relay component soldering work
- Auto dross clean, adjustable for soldering height
- Heater pipe is a single unit and can be easy exchange & maintenance
- Adopted with titanium solder pot, sustains high temperature, max. 600°C
- Temperature control, reduce tin oxidation
Specifications
| Air Pressure | 5 kg/cm² |
|---|---|
| Electric Source | AC 220V, 50/60Hz, 2000W |
| Inner Tank | 300(L) × 100(W) × 30(H) mm |
| Unit Dimension | 580(L) × 350(W) × 530(H) mm |
| Unit Weight | 20 kg |
Process flow
Process flow
- Manual load / NG unload
- Auto flux
- Auto solder
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
