Station 04 · Soldering

PME-T8R1 / T8R2

XYZ Robotic Soldering Machine

Computer-controlled XYZ soldering with one or two irons, ±0.02 mm precision and 99 stored programs. Repeated solder feed gives fast, clean joints.

2 models: PME-T8R1, PME-T8R2

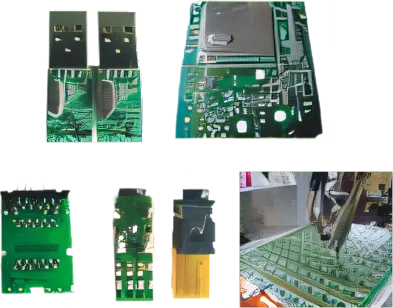

Features

XYZ-axis drive and using advanced motion control algorithm can effectively improve the positioning accuracy and repeatability movement ends. The machine is fully controlled by computer, handheld teach-pad directly through digital inputs or reproduction of spot position coordinates Teach
Large power heating controller, Precision thermocouple located at the front of the soldering iron. Ensure return temperature in stable continuous solder
Sleeve design tip and facilitate quick & easy replacement
Specializing in the production automation Iron Head models, style diversification, can quickly solve difficult soldering process
Repeatedly send tin system, can make Joints the result is more rapid and perfect
99 set program memory and freely adjustable spot welding angle
No-solder buzzer alarm

	PME-T8R1	PME-T8R2
Working range	260(X) × 300(Y) × 100(Z) mm	720(X) × 300(Y) × 100(Z) mm
Max. speed	0–500 mm/s
Precision	±0.02 mm
Operating system	Hand-held control + touch-key editor
Temperature control	0°C–450°C
Temperature-control precision	±2°C
Tin-wire diameter	0.4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.2 mm
Max. workload	10 kg
Memory capacity	Up to 99 program files
Soldering tip/head	One	Two
Drive system	Micro-stepping motor or belt
Tin-wire position	Adjustable
Machine dimensions	520(X) × 580(Y) × 750(Z) mm	720(X) × 580(Y) × 770(Z) mm
Machine weight	50 kg	60 kg
