Station 01 · Pin & lamination insertion
PME-10
Pin Insertion Machine

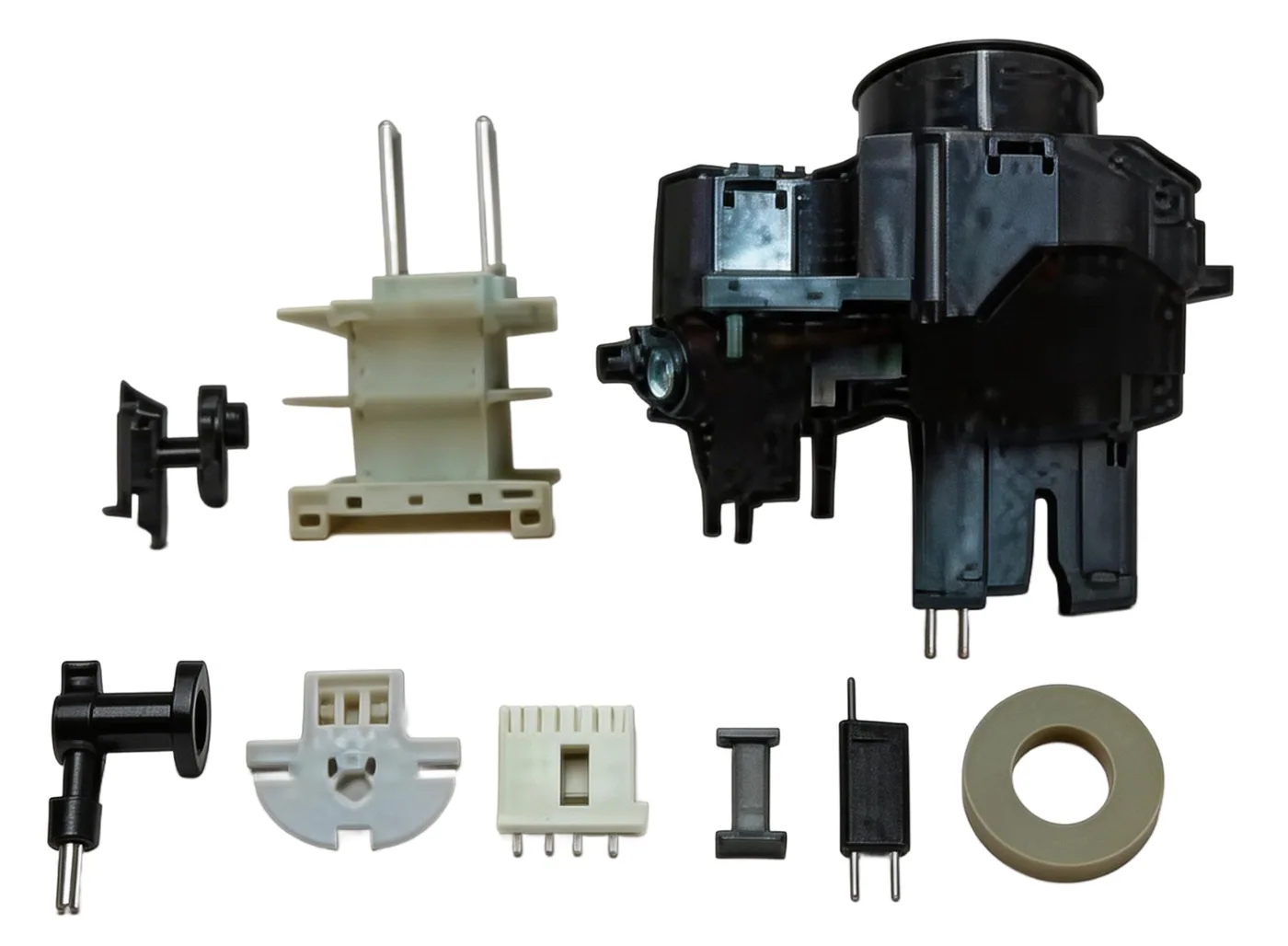

Inserts round, square or flat pins into bobbins, straight or L-bent, up to 10 pins per rail. Molds change quickly, which suits short runs of many part types.
- Pin diameter
- 0.4–1.2 mm
- Cycle time
- 1 pcs/1.5 sec ; 2 pcs/2.8 sec
- Power
- AC 220V , 50/60Hz
- Weight
- 75 kg
Features
- Dedicated to small amount but many type items production
- Easy for exchanging mold
- Applicable for Round, Square and Flat pin wire
- Adjustable for swage's position, hardness & enhance retention force
- Straight or "L" shape pin bending insertion can be made
- Maximum 10 pins insertion per rail
Specifications
| Pin Diameter | 0.4–1.2 mm |
|---|---|
| Cycle Time | 1 pcs/1.5 sec ; 2 pcs/2.8 sec |
| Air Pressure | 6–7 kg/cm² |
| Electric Source | AC 220V , 50/60Hz |
| Unit Dimension | 600(L) × 660(W) × 1850(H) mm |
| Unit Weight | 75 kg |
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
