Station 01 · Pin & lamination insertion
PME-28
Two-Rail Pin Insertion Machine
Inserts up to 20 pins per cycle on two rails at 40 to 60 pcs/min, with a mold-card system for fast changeovers and detectors for bent pins and missing wire.
- Pin diameter
- 0.4–0.8 mm
- Cycle time
- 40–60 pcs/min
- Power
- AC 380V , 50/60Hz 3 phase
- Weight
- 180 kg
Features
- Design as per user's requests or connect with their production line
- Adopted "Mold Card" system, it is easy for exchange different type of mold by removing & inserting particular "mold card"
- Equipped with crimping device that enhances retention force. Also adopted "Auto detector for pin bent", "detector for no wire" & "counter" for easy work monitoring

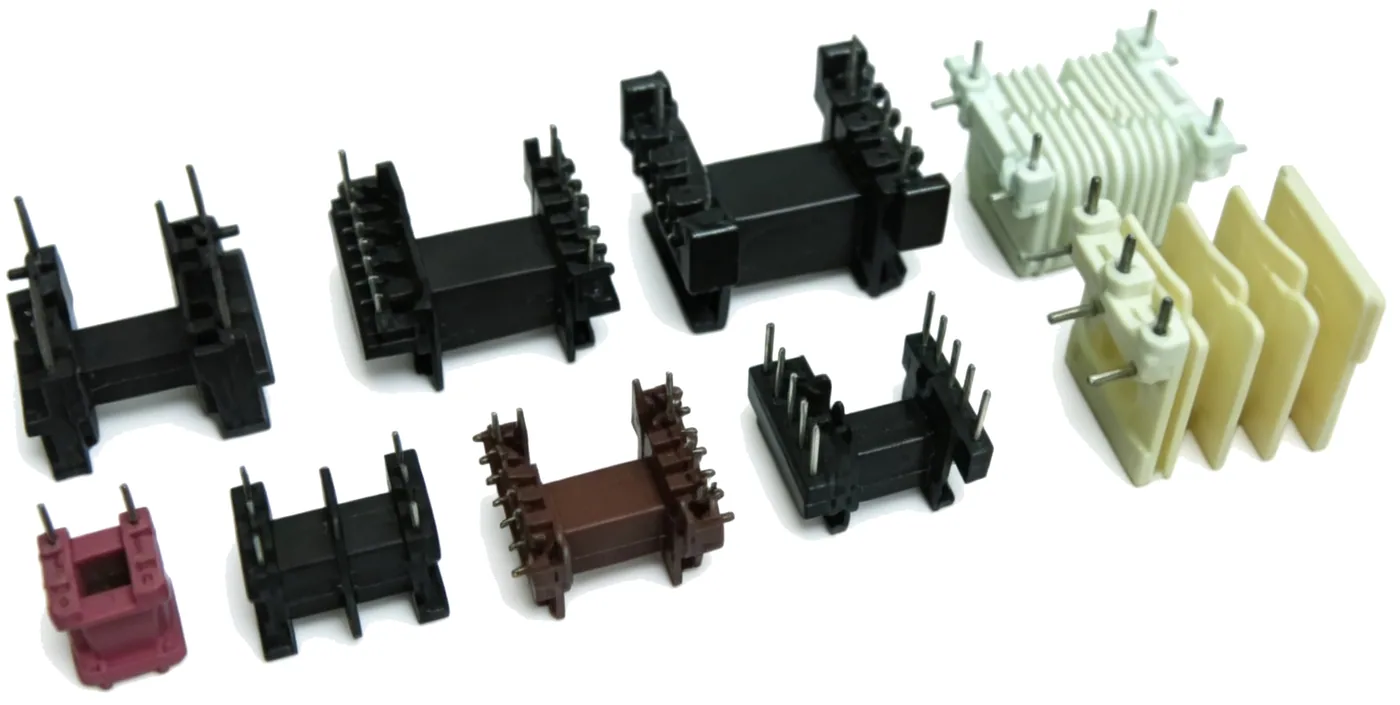

- Straight or "L" shape pin bending insertion can be made
- Applicable for Round, Square and Flat pin wire
- Two rails pin insertion, maximum 20 pins insertion per cycle
Specifications
| Pin Diameter | 0.4–0.8 mm |
|---|---|
| Cycle Time | 40–60 pcs/min |
| Electric Source | AC 380V , 50/60Hz 3 phase |
| Unit Dimension | 650(L) × 450(W) × 1500(H) mm |
| Unit Weight | 180 kg |
| Optional Device | Vibrating bowl feeder |
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
