Station 02 · Coil winding

PME-801 / 801F / 801C / 802 / 802F / 804F

CNC Coil Winding Machines

Microcomputer-controlled bench winders with 1, 2 or 4 spindles for mini, power-supply and ignition transformers and relays, with 999-step memory and 0.01 mm traverse setting.

Spindles: 1 / 2 / 4
Wire diameter: 0.02–3.0 mm
Spindle speed: 1,400–6,000 rpm
Memory: 999 steps

Enquire about this machine Product sheet (PDF)

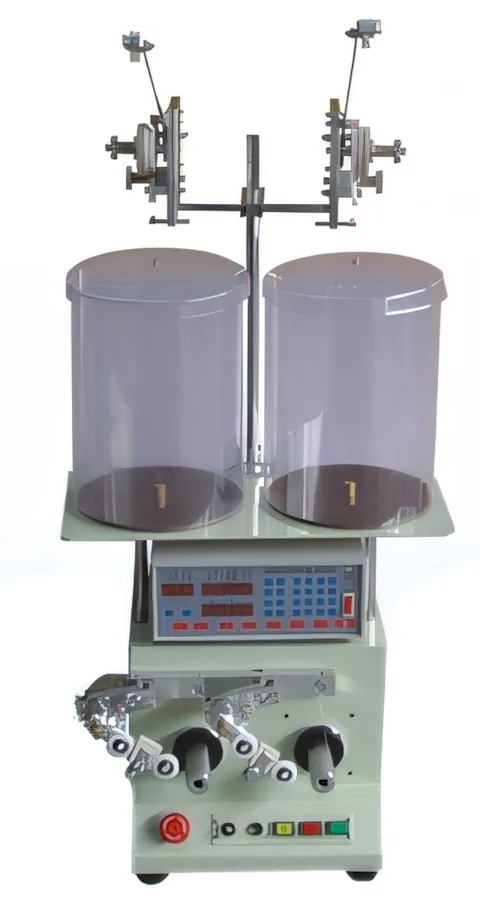

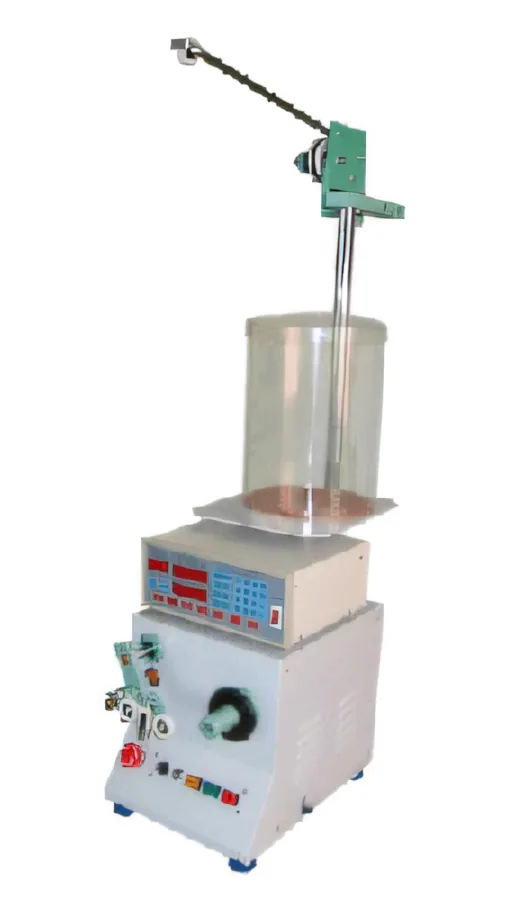

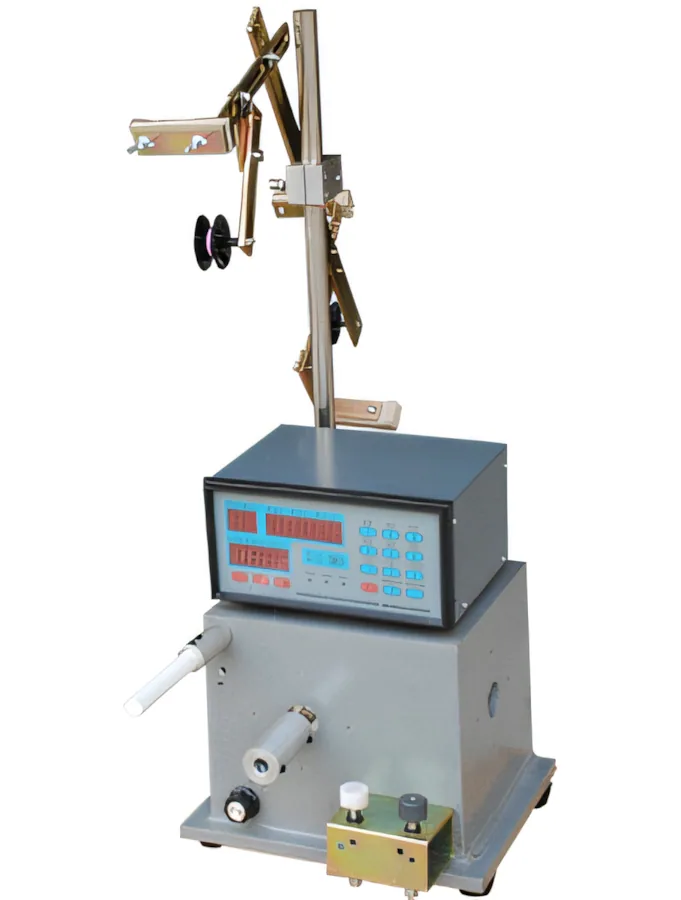

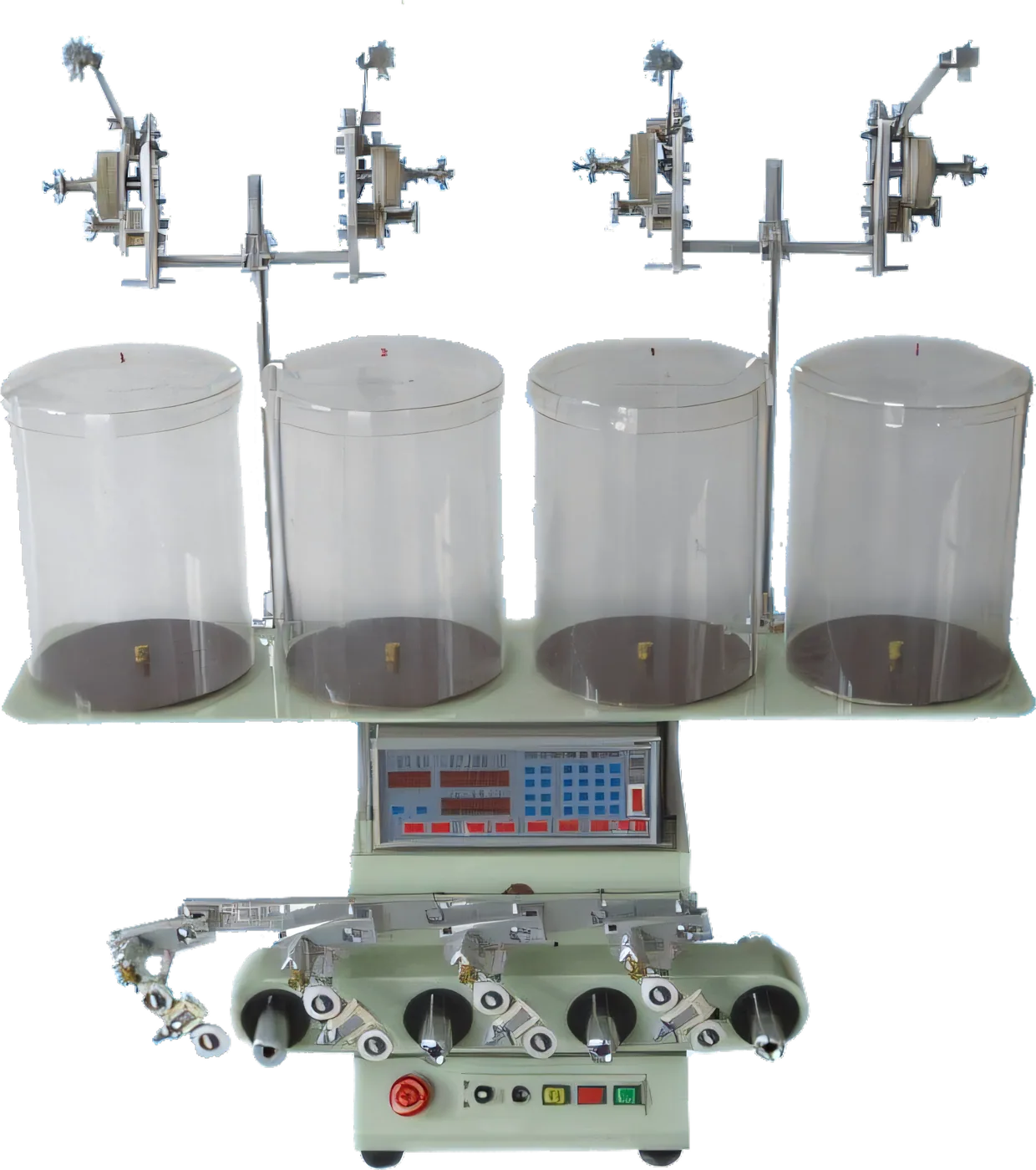

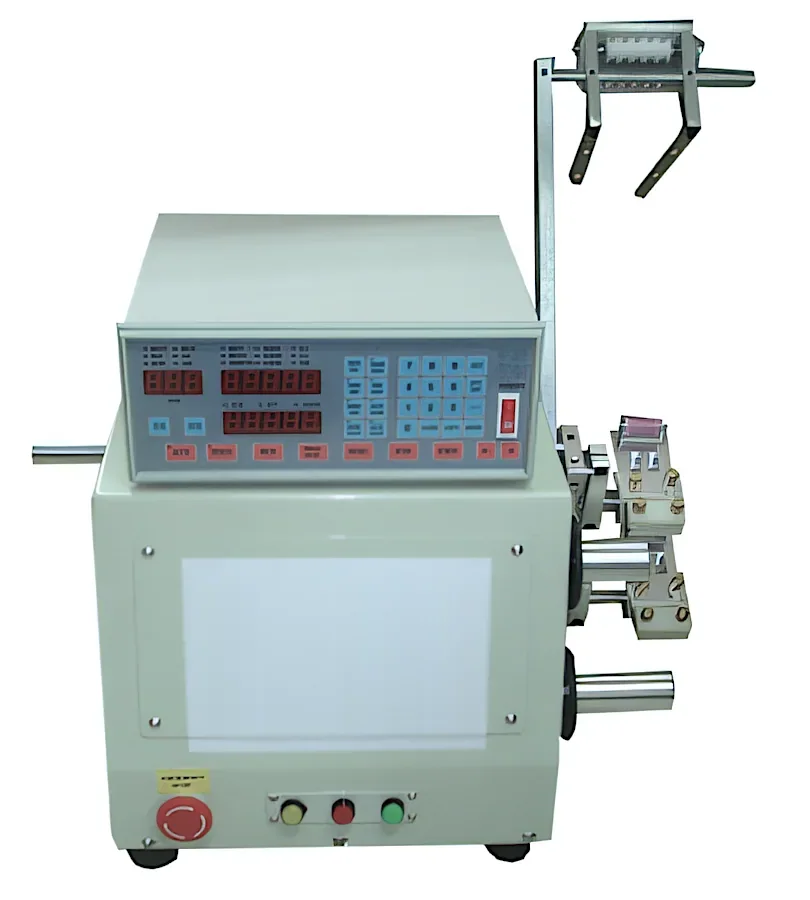

6 models: PME-801, PME-801F, PME-801C, PME-802, PME-802F, PME-804F

Features

Suitable for Mini Transformer, Power Supply Transformer, Relay, High Voltage Ignition Coil and exchangeable Power Supply Transformer manufacturing etc. Easy setting and high precision of spreading control

Specifications

	PME-801	PME-801F	PME-801C	PME-802	PME-802F	PME-804F
No. of spindles	1	1	1	2	2	4
Wire diameter	0.05–1.0 mm	0.05–1.0 mm	1.0–3.0 mm	0.02–0.6 mm	0.02–0.4 mm	0.02–0.2 mm
Spindle speed	3,000 rpm	3,000 rpm	1,400 rpm	3,000 rpm	6,000 rpm	6,000 rpm
Frame max.	100 mm	100 mm	130 mm	130 mm	100 mm	100 mm
Wire pitch	0.01–0.99 mm
Control mode	Microcomputer control
Memory capacity	0–999 inputs
Traverse width	1–100 mm; 0.01 mm setting unit
Main motor	AC or DC motor (brushless)
Traverse motor	Stepping motor; 0.9° step angle
Electric source	AC 220 V, 50/60 Hz
Dimensions (L × W × H)	40 × 60 × 45 cm	66 × 60 × 110 cm	66 × 75 × 50 cm	40 × 60 × 45 cm	66 × 60 × 110 cm	66 × 102 × 110 cm
Unit weight	32 kg	30 kg	15 kg	34 kg	34 kg	68 kg
Optional devices	Tension meter; reel cover; tail support
