PME-03M Automatic Dip Soldering Machine, Manual Load
Station 04 · Soldering

PME-03M

Automatic Dip Soldering Machine, Manual Load

Load by hand; the machine fluxes, dip-solders at a programmed angle and unloads.

Control
Servo Motor & PLC
Power
AC 220V, 50/60Hz, 3500W
Enquire about this machine Product sheet (PDF)

Features

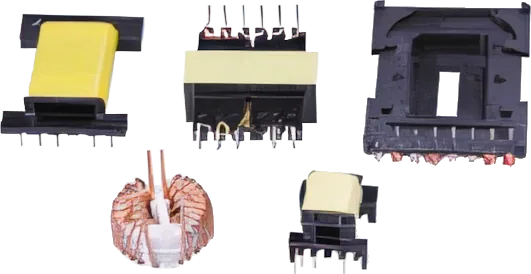

  • Applicable for Vertical or Horizontal Coil or Relay component soldering work
  • Manual load, auto flux dipping, auto dip soldering and auto unloading
  • Programmable angle rotation for dip soldering
  • Custom design according to customer's special soldering request and specification
  • Functional, stable, high efficiency, labor cost saving and simple operation

Specifications

OperationControl Touch Panel Interface
ControlServo Motor & PLC
Air Pressure4-6 kg/cm²
Electric SourceAC 220V, 50/60Hz, 3500W
Unit Dimension920(L) × 700(W) × 1300(H) mm

Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
