Station 04 · Soldering
PME-02R PLC
Angle Dip Soldering Machine, PLC
The PME-02R angle soldering process, run from a PLC and touch panel.
- Cycle time
- 10–20pcs/12sec
- Inner tank
- 300(L) × 100(W) × 60(H) mm
- Control
- PLC
- Power
- AC 220V, 50/60Hz, 2000W
Features
- Selectable for an angle soldering process
- Adopted with PLC controller system, it can store up to 99 sets of memory, each memory can be set up to 10 parameters memory harmony with stepping motor
- One program can position 3 steps function, each step can have a setting for:- (a) Angle setting (b) Dropping height setting (c) Pre-heat time setting

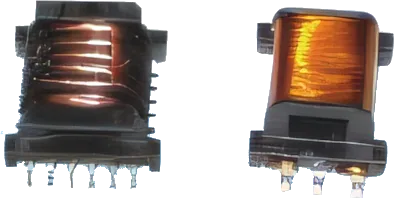

- For horizontal coil, angle one side position for solder, then angle other side for solder, then parallel, finally dragging soldering
- Equipped with titanium solder pot, temperature control, reduce tin oxidation. And heater pipe is a single unit and can be easily exchange for maintenance
Specifications
| Cycle Time | 10–20pcs/12sec |
|---|---|
| Operation | Control Touch Panel Interface |
| Control | PLC |
| Air Pressure | 5 kg/cm² |
| Electric Source | AC 220V, 50/60Hz, 2000W |
| Inner Tank | 300(L) × 100(W) × 60(H) mm |
| Unit Dimension | 550(L) × 600(W) × 530(H) mm |
| Unit Weight | 60 kg |
| Optional Device | Nozzle, Solder cup or Dragging mechanism |
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
