Station 04 · Soldering
PME-04E
Automatic Dip Soldering Machine
Fluxes and dip-solders vertical or horizontal coils and relays twice per cycle, with automatic dross cleaning and a titanium pot rated to 600 °C.
- Cycle time
- 1 pcs/1.5 sec
- Inner tank
- 155(L) × 110(W) × 65(H) mm
- Power
- AC 220V, 50/60Hz, 1600W
- Weight
- 70 kg
Features

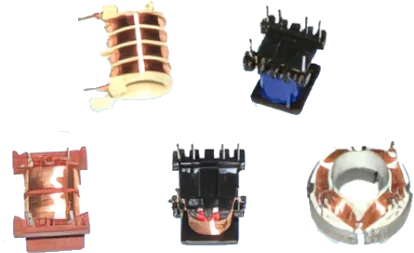

- Applicable for Vertical or Horizontal Coil or Relay component soldering work
- Auto dross clean, adjustable for soldering height
- Programmable setting for daily or week production schedule
- Heater pipe is a single unit and can be easy exchange & maintenance
- Two times solder per cycle, timer setting for dipping (Solder cup raise up)
- Adopted with titanium solder pot, sustains high temperature, max. 600°C
Specifications
| Cycle Time | 1 pcs/1.5 sec |
|---|---|
| Air Pressure | 5 kg/cm² |
| Electric Source | AC 220V, 50/60Hz, 1600W |
| Inner Tank | 155(L) × 110(W) × 65(H) mm |
| Unit Dimension | 1100(L) × 110(W) × 1200(H) mm |
| Unit Weight | 70 kg |
Process flow
Process flow
- Manual load / NG unload
- Auto flux
- Auto solder
- Auto unload
Specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
